802.11AC, 1167 Mbps, Waterproof
Description
Ubiquiti UAP-AC-M
*EU Power Supply Included*
Please note a UK power cable is required for this unit please select UBIPC60CMWUK
Product Overview

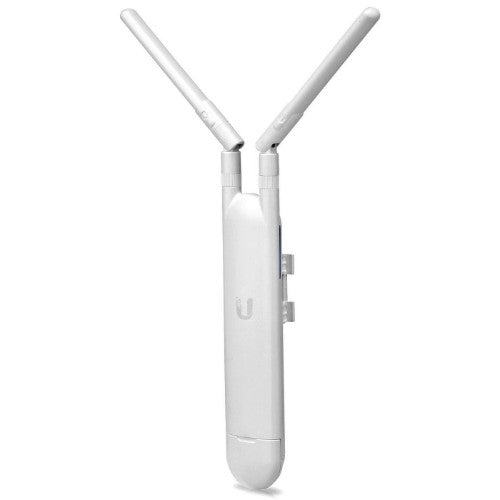

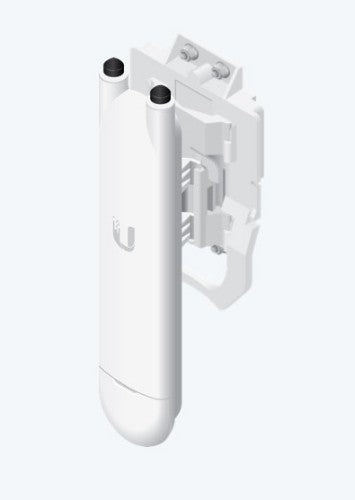

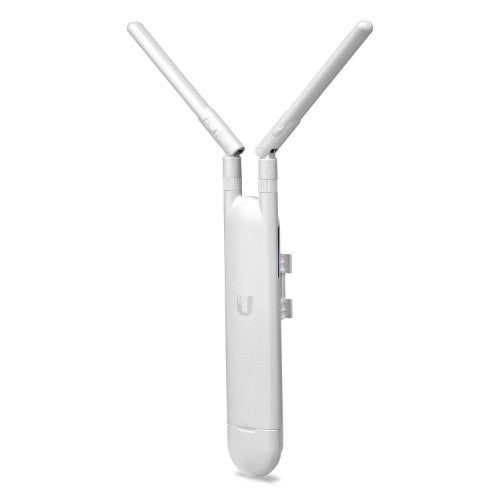

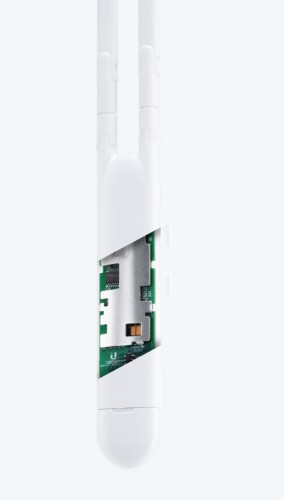

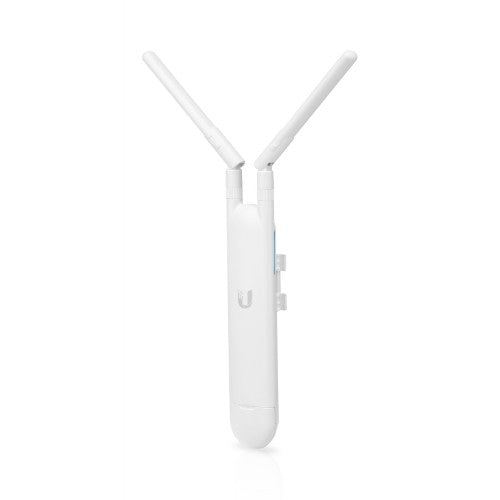

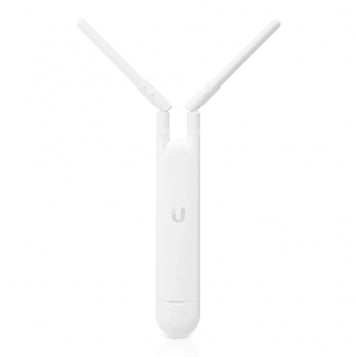

High-performance 802.11ac 2x2 MIMO access point for indoor and outdoor installations. Two RP-SMA connectors support external antennas.
Expand your Wi-Fi network outdoors with the UniFi? AC Mesh Access Point part of the Ubiquiti Networks? UniFi Enterprise Wi-Fi System. The UAP-AC-M is a high-performance outdoor 2x2 MIMO 802.11ac dual-band access point capable of speeds of up to 1167 Mbps. It features two RP-SMA connectors which can be used with the included dual-band omni-directional antennas or with an optional connectorized dual-band antenna for customized pattern shaping.
* 5 packs do not come with PoE injectors.
Works With UniFi Network Controller
• Manage Your Networks from a Single Control Plane.
• Intuitive and Robust Configuration Control and Monitoring.
• Remote Firmware Upgrade.
• Users and Guests.
• Guest Portal/Hotspot Support.
| Features |
|---|
| Type |
Indoor/Outdoor |
| Range |
Mesh |
| Wi-Fi 6 |
No |
| Band |
Dual |
| Transmit Speed |
300 Mbps 2.4GHz 867 Mbps 5GHz |
| MIMO |
2 x 2 |
| Supported Clients |
250+ |
| SSID |
4 |
| Ethernet LAN (RJ-45) ports quantity |
1 x 10/100/1000 |
| Dimensions (L x W x H) |
353 x 46 x 34.4 mm |
| Warranty |
1 Year |
Specifications
| Data transmission |
|---|
| Maximum data transfer rate |
1167 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Reset button |
Yes |
| Number of users |
250 user(s) |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3af |
| Certification |
CE, FCC, IC |
| Maximum data transfer rate |
1167 Mbit/s |
| MIMO |
Yes |
| Network |
|---|
| Internal |
No |
| Number of users |
250 user(s) |
| Networking standards |
IEEE 802.3af |
| Management features |
|---|
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Number of users |
250 user(s) |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.3af |
| Maximum data transfer rate |
1167 Mbit/s |
| MIMO |
Yes |
| Security |
|---|
| Number of SSID supported |
4 |
| Service Set Identifier (SSID) features |
Hidden SSID |

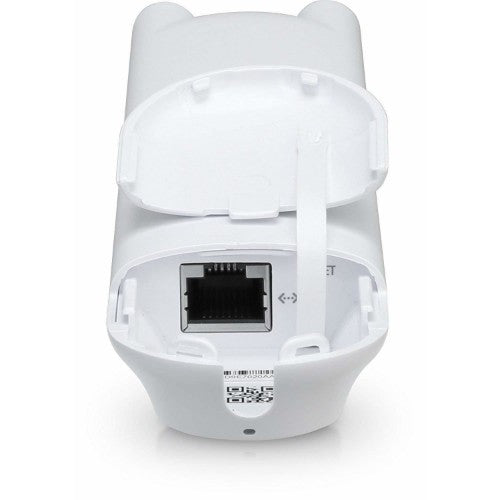

| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power consumption (typical) |
8.5 W |
| Power supply |
24 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
Wall |
| Product colour |
White |
| Reset button |
Yes |
| Internal |
No |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antennas quantity |
2 |
| Antenna gain level (max) |
4 dBi |
| Antenna features |
Detachable antenna |
| Technical details |
|---|
| Reset button |
Yes |
| Harmonized System (HS) code |
85176990 |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Weight & dimensions |
|---|
| Width |
46 mm |
| Depth |
34 mm |
| Weight |
152 g |
| Height |
353 mm |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 70 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
