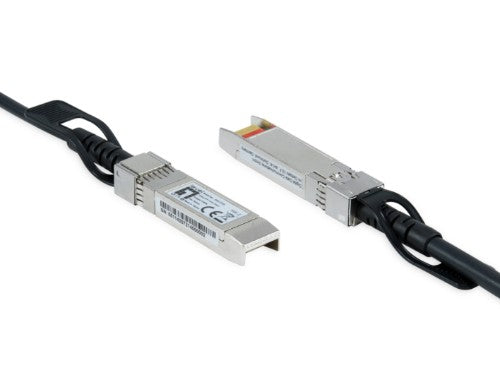

LevelOne 10Gbps SFP+ Direct Attach Copper Cable, 3m, Twinax

SFP+ - SFP+, 10 Gbps, M/M, 30 AWG, 3m

Description

The SFP+ passive cable assemblies are high performance, cost effective I/O solutions for 10G Ethernet and 10G Fiber Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fiber Channel industry standard requirements for performance and reliability

Key Features
- Support for multi-gigabit data rates up to 10.5Gbps
- Data rates backward compatible to 1Gbps
- Hot-pluggable SFP 20PIN footprint
- I/O Connector designed for high speed differential signal applications
- Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
- Compatible to SFP+ MSA
- Temperature Range: 0~ 70 °C
- RoHS Compatible

Specifications

Features
Connector 1	SFP+
Connector 2	SFP+
Cable length	3 m
Data transfer rate	10.5 Gbit/s
Product colour	Black, Stainless steel
Connector 2 gender	Male
Connector 1 gender	Male
InfiniBand protocol	Yes
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Harmonized System (HS) code	85447000
Certificates
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Weight & dimensions
Weight	200 g
Cable length	3 m
Package width	310 mm
Package depth	230 mm
Packaging data
Package width	310 mm
Package depth	230 mm
Technical details
Connector 1	SFP+
Connector 2	SFP+
Cable length	3 m
Compliance certificates	RoHS
Data transmission
Data transfer rate	10.5 Gbit/s
Logistics data
Master (outer) case width	360 mm
Master (outer) case length	320 mm
Master (outer) case height	280 mm
Master (outer) case gross weight	5.4 kg
Products per master (outer) case	30 pc(s)
Harmonized System (HS) code	85447000
