0.59", 3LCD, WXGA (1280x800), 3500 Lumen, 14000:1, 250W, 3x HDMI, White/Grey
Description

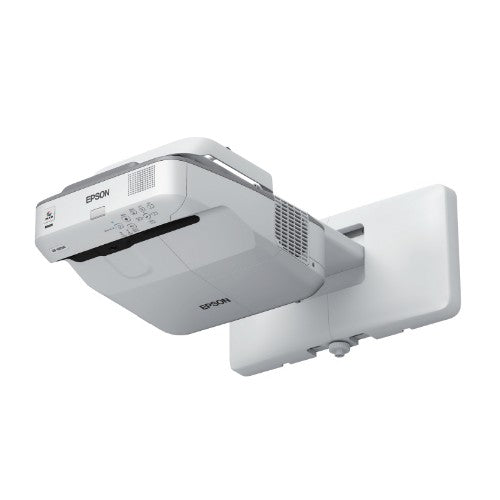

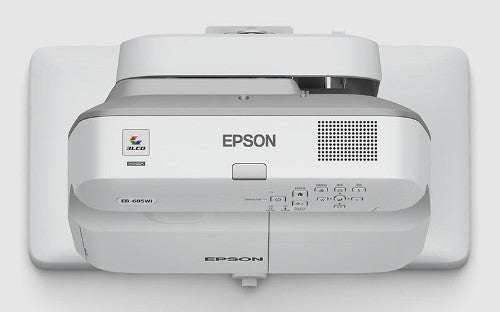

This projector offers superb interactivity thanks to its dual pen capability. With a brightness of 3,500 lumens and HD-ready WXGA resolution, the EB-685Wi's ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. A 14,000:1 contrast ratio and HDMI input mean that students benefit from sharp, clear images.
High brightness and image quality
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than competitive projectors1. With a scalable display size of up to 100 inches, two types of content can be displayed using the split-screen without compromising on quality.
Dual pen
Epson's interactive pens are now even more responsive and easy to use when annotating directly on screen. With the new dual pens, teacher and student or two students can work simultaneously using different attributes.
Highly reliable
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
Interact and enhance learning
Multi-PC projection software allows teachers and students to share content simultaneously. The moderator function allows teachers to remain in control, choosing what content to display. Combine two projectors to create one large interactive display. Split-screen capability allows teachers to display two separate types of content simultaneously, such as a lesson plan from a PC and a still image or video clip from a document camera.
Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Specifications
| Projector |
|---|
| Number of colours |
1.073 billion colours |
| White light output |
3500 ANSI lumens |
| Colour light output |
3500 ANSI lumens |
| Projector native resolution |
WXGA (1280x800) |
| Projection distance (wide) |
0 - 0.4 m |
| Projection distance (tele) |
0 - 0.6 m |
| Native aspect ratio |
16:10 |
| Supported aspect ratios |
16:10 |
| Screen size compatibility |
1524 - 2540 mm (60 - 100") |
| Contrast ratio (typical) |
300:1 |
| Contrast ratio (dynamic) |
14000:1 |
| Zoom ratio |
1.35:1 |
| Projector brightness (economic mode) |
2900 ANSI lumens |
| Vertical synchronization (min) |
0.1 kHz |
| Vertical synchronization (max) |
0.12 kHz |
| Matrix size |
1.5 cm (0.59") |
| Keystone correction, vertical |
±3° |
| Keystone correction, horizontal |
±3° |
| Projection technology |
3LCD |
| Projector brightness |
3500 ANSI lumens |
| Lamps |
|---|
| Lamp power |
250 W |
| Light source type |
Lamp |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
10000 h |
| Light source |
|---|
| Lamp power |
250 W |
| Light source type |
Lamp |
| Service life of light source |
5000 h |
| Service life of light source (economic mode) |
10000 h |
| Lens system |
|---|
| Zoom ratio |
1.35:1 |
| Focus |
Manual |
| Throw ratio |
0.28:1 |
| Video |
|---|
| Full HD |
No |
| 3D |
No |
| Audio |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Ports & interfaces |
|---|
| RS-232C |
Yes |
| VGA (D-Sub) ports quantity |
3 |
| HDMI ports quantity |
3 |
| Ethernet LAN (RJ-45) ports |
1 |
| USB 2.0 ports quantity |
3 |
| Composite video in |
1 |
| Audio (L/R) in |
1 |
| Headphone outputs |
1 |
| Microphone in |
Yes |
| S-Video inputs quantity |
1 |
| Serial interface type |
RS-232C |
| RS-232 ports |
1 |
| DVI port |
No |
| AC (power) in |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN (RJ-45) ports |
1 |
| Storage |
|---|
| Card reader integrated |
No |
| Sound emission |
|---|
| Noise level |
35 dB |
| Noise level (economic mode) |
30 dB |
| Technical details |
|---|
| Product colour |
Grey, White |
| RS-232C |
Yes |
| Lamp power |
250 W |
| Products per pallet |
12 pc(s) |
| Quantity per pack |
1 pc(s) |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Pallet gross height |
15 cm |
| Products per pallet layer (UK) |
2 pc(s) |
| Products per pallet layer |
2 pc(s) |
| Products per pallet (UK) |
12 pc(s) |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Pallet height (UK) |
15 cm |
| Performance |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Noise level |
35 dB |
| Noise level (economic mode) |
30 dB |
| Features |
|---|
| Noise level |
35 dB |
| Noise level (economic mode) |
30 dB |
| Country of origin |
Philippines |
| Multimedia |
|---|
| Built-in speaker(s) |
Yes |
| RMS rated power |
16 W |
| Design |
|---|
| Product type |
Ultra short throw projector |
| Cable lock slot type |
Kensington |
| Product colour |
Grey, White |
| LED indicators |
Yes |
| Cable lock slot |
Yes |
| Placement |
Wall |
| Display |
|---|
| Built-in display |
No |
| Power |
|---|
| AC input voltage |
220 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power source |
AC |
| Power consumption (typical) |
354 W |
| Power consumption (standby) |
0.39 W |
| Power consumption (economy mode) |
310 W |
| Packaging data |
|---|
| Package width |
490 mm |
| Package depth |
730 mm |
| Package height |
335 mm |
| Package weight |
20 kg |
| Security |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Indication |
|---|
| LED indicators |
Yes |
| Software |
|---|
| Windows operating systems supported |
Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
20 - 80% |
| Storage temperature (T-T) |
-10 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Package width |
490 mm |
| Package depth |
730 mm |
| Package height |
335 mm |
| Weight |
5.9 kg |
| Width |
367 mm |
| Depth |
400 mm |
| Height |
149 mm |
| Package weight |
20 kg |
| Packaging content |
|---|
| Remote control included |
No |
| Manual |
Yes |
| Logistics data |
|---|
| Products per pallet |
12 pc(s) |
| Quantity per pack |
1 pc(s) |
| Pallet gross width |
80 cm |
| Pallet gross length |
120 cm |
| Pallet gross height |
15 cm |
| Products per pallet layer (UK) |
2 pc(s) |
| Products per pallet layer |
2 pc(s) |
| Products per pallet (UK) |
12 pc(s) |
| Pallet width (UK) |
100 cm |
| Pallet length (UK) |
120 cm |
| Pallet height (UK) |
15 cm |
| Other features |
|---|
| RS-232C |
Yes |
| RS-232 ports |
1 |
| Power consumption (economy mode) |
310 W |
