19" TFT LCD, 1440 x 900px, 250cd/m2, 16.7M, 20 kg
Description

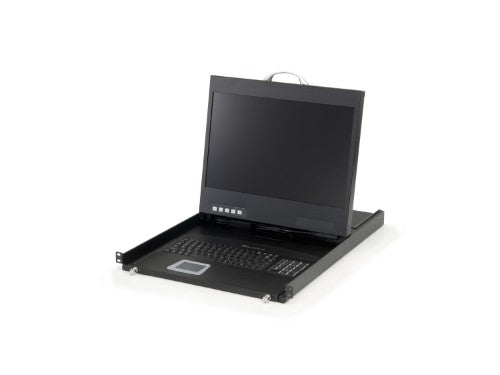

The LevelOne KVM-8901 is a compact and modular KVM console drawer designed to be used in a standard 19-inch server rack. It offers connectivity to 8 or 16 computers by depending on the LevelOne KVM module that is installed (KCM-0832 or 1632). It features a 19-inch retractable LCD(19:10) high video quality up to 1440 x 900 monitor and keyboard with built-in touchpad. Users can daisy chain up to eight units of KCM-0832/1632 together, providing control of up to 128 computers in total, support Auto Scan Mode for monitoring PCs and flexible and easy PC selection via KVM-OSD manual or hot Keys.
Specifications
| Display |
|---|
| Number of OSD languages |
8 |
| Display number of colours |
16.78 million colours |
| Display type |
LCD |
| Display |
TFT LCD |
| Display diagonal |
48.3 cm (19") |
| Viewing angle, vertical |
85° |
| Viewing angle, horizontal |
85° |
| On Screen Display (OSD) |
Yes |
| Display resolution |
1440 x 900 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
500:1 |
| Aspect ratio |
16:10 |
| Technical details |
|---|
| On/off switch |
Yes |
| LED indicators |
Yes |
| Buttons |
Auto, down, Menu, Up |
| Relative humidity |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Mean time between failures (MTBF) |
50000 h |
| Product colour |
Black |
| Cables included |
AC |
| Ports & interfaces |
|---|
| Video port type |
VGA |
| Keyboard port type |
PS/2 |
| DC-in jack |
Yes |
| Keyboard |
|---|
| Keyboard layout |
QWERTY |
| Keyboard language |
Spanish |
| Built-in touchpad |
Yes |
| Keyboard number of keys |
105 |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Mac compatibility |
Yes |
| Power |
|---|
| Power consumption (typical) |
19.2 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Certificates |
|---|
| Certification |
CE, FCC, Rohs, REACH |
| Weight & dimensions |
|---|
| Weight |
20 kg |
| Width |
482 mm |
| Height |
44 mm |
| Depth |
610 mm |
| Packaging data |
|---|
| Package width |
742 mm |
| Package depth |
576 mm |
| Package height |
167 mm |
| Package weight |
1.3 kg |
| Packaging content |
|---|
| Quick installation guide |
Yes |
| Resource CD |
Yes |
| Rack mount kit |
Yes |
| AC adapter included |
Yes |
| Cables included |
AC |
