Description

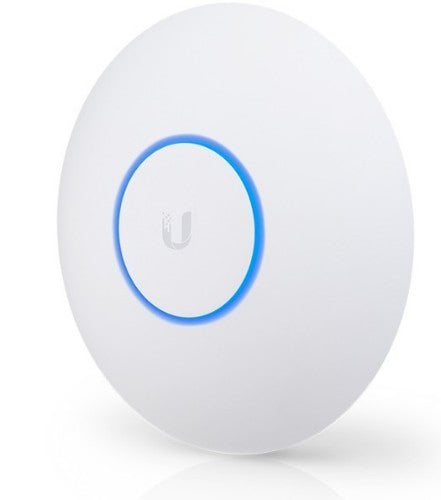

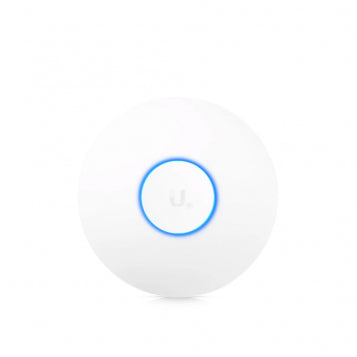

UAP-AC-SHD - 802.11ac Wave 2 Access Point w/ Dedicated Security Radio
The UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.
The built-in, dedicated security and monitoring radios of the UniFi AC SHD (Secure High Density) AP provides visibility into site performance, channel planning, and
local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Description
Scalable Enterprise Wi-Fi ManagementThe UniFi® Ecosystem enables the system integrator to effectively and efficiently create wireless network designs of any size, from small to large, with the potential for unlimited scalability.
The built-in, dedicated security and monitoring radios of the UniFi AC SHD (Secure High Density) AP provides visibility into site performance, channel planning, and
local interferers, allowing the integrator to properly evaluate performance and quickly respond to changing interference and security threat landscapes. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance.
Specifications
| Data transmission | |
|---|---|
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| Reset button | Yes |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | CE, FCC, IC |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Internal | No |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Wi-Fi data rate (max) | 1733 Mbit/s |
| VLAN support | Yes |
| Rate limiting | Yes |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 1000 Mbit/s |
| Security | |
| Security algorithms | WEP, WPA-Enterprise, WPA-PSK |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
| Power consumption (max) | 20 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Product colour | White |
| Reset button | Yes |
| Internal | No |
| Certification | CE, FCC, IC |
| Antenna | |
| Antennas quantity | 2 |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Reset button | Yes |
| Harmonized System (HS) code | 85176990 |
| Certificates | |
| Certification | CE, FCC, IC |
| Weight & dimensions | |
| Width | 220 mm |
| Depth | 48.1 mm |
| Weight | 700 g |
| Height | 220 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 70 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
