RJ45 x 2, USB Type C, 802.11a/b/g/n/ac/ac-wave2
Description

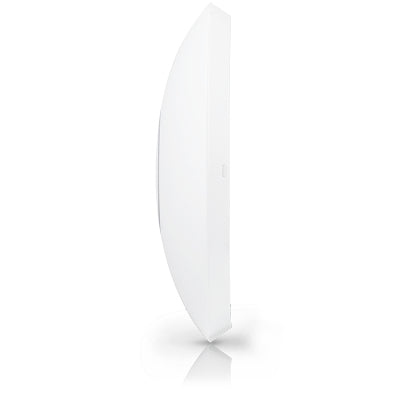

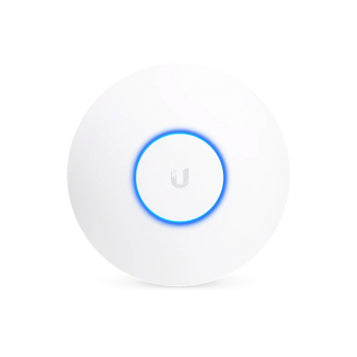

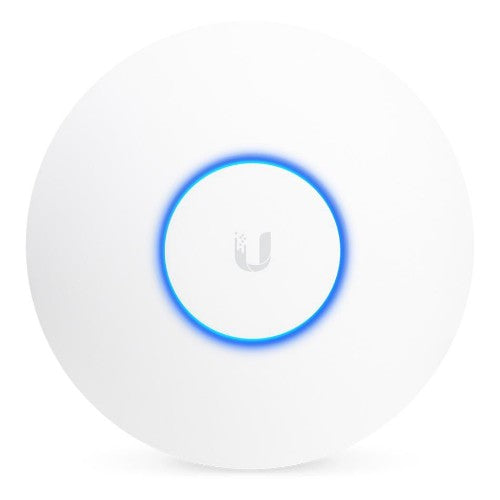

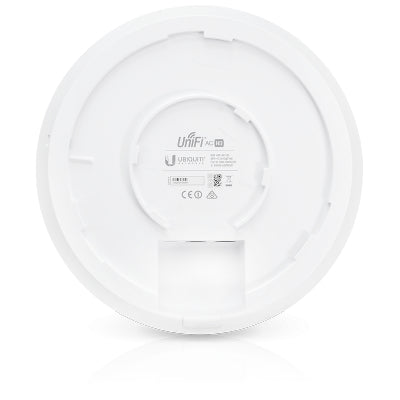

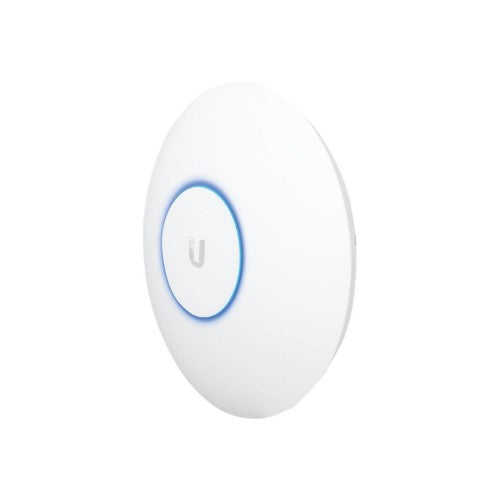

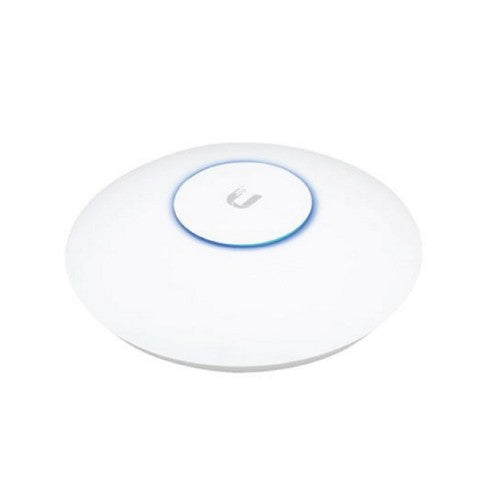

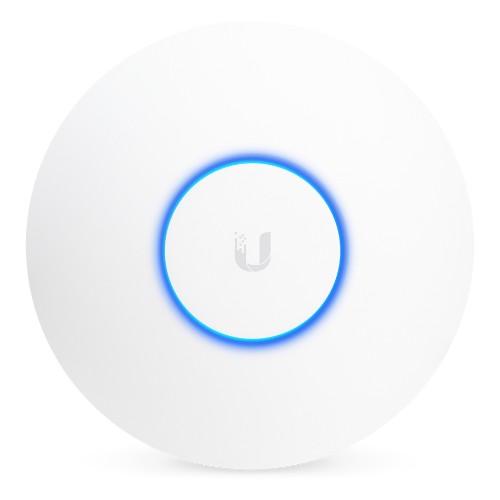

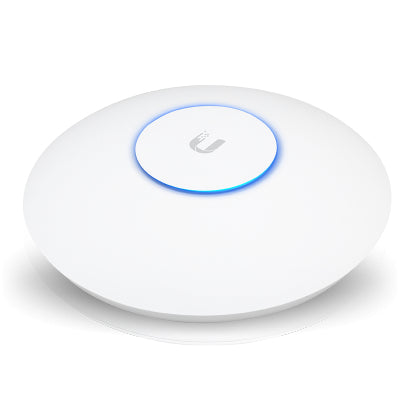

Build your Wi-Fi network with the UniFi® AC HD Access Point, part of the Ubiquiti Networks® UniFi Enterprise Wi-Fi System. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.
Specifications
| Data transmission |
|---|
| Wi-Fi data rate (max) |
1733 Mbit/s |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1733 Mbit/s |
| Performance |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Wi-Fi data rate (max) |
1733 Mbit/s |
| Reset button |
Yes |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Certification |
CE, FCC, IC |
| Maximum data transfer rate |
1733 Mbit/s |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Network |
|---|
| Internal |
No |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Management features |
|---|
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Features |
|---|
| 2.4 GHz |
Yes |
| 5 GHz |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| Wi-Fi data rate (max) |
1733 Mbit/s |
| VLAN support |
Yes |
| Quality of Service (QoS) support |
Yes |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1733 Mbit/s |
| Dynamic Frequency Selection (DFS) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| Security |
|---|
| Number of SSID supported |
8 |
| Security algorithms |
AES, TKIP, WEP, WPA, WPA-PSK, WPA2 |
| Service Set Identifier (SSID) features |
Hidden SSID |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| Ethernet LAN (RJ-45) ports |
2 |
| Power |
|---|
| Power consumption (max) |
17 W |
| Power over Ethernet (PoE) |
Yes |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| Reset button |
Yes |
| Internal |
No |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antennas quantity |
4 |
| Antenna features |
Integrated antenna |
| Technical details |
|---|
| Reset button |
Yes |
| Harmonized System (HS) code |
85176990 |
| Software |
|---|
| Dynamic Frequency Selection (DFS) |
Yes |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
220 mm |
| Weight |
700 g |
| Height |
48.1 mm |
| Packaging data |
|---|
| Mounting kit |
Yes |
| Packaging content |
|---|
| Mounting kit |
Yes |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 70 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
