10GBASE-LRM SFP Module for 10-Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (SFP-10G-LRM=)
Key Features
- LINK LENGTH: Supports link lengths of 220 m on standard-grade FDDI multimode fibre; transmitter should be coupled through a mode conditioning patch cable for OM1 and OM2 (not required for applications over OM3 or OM4)
- COMPACT: Industry-smallest 10G form factor for greatest density per chassis
- HOT SWAPPABLE: Plugs into an Ethernet SFP+ port of a Cisco switch with no need to shut down if installing or replacing
- VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for investment protection and ease of technology migration
- PEACE OF MIND: 5-year standard replacement warranty
Description

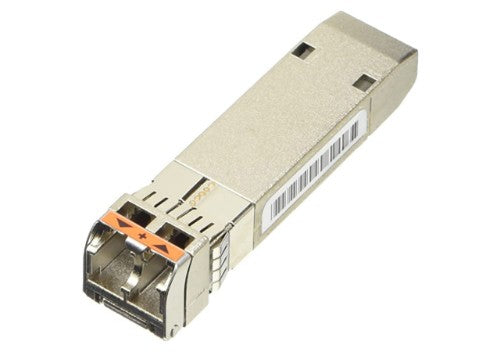

The Cisco 10GBASE-LRM SFP Module delivers 10-Gigabit Ethernet connectivity to customers with older Fibre Distributed Data Interface (FDDI), Optical Multimode 1 (OM1) and Optical Multimode 2 (OM2) Multimode Fibre (MMF) cable installation. It supports link lengths of 220 M on FDDI, OM1 and OM2. This input/output transceiver plugs into an Ethernet SFP+ port of a Cisco switch and offers optical interoperability with 10GBASE XENPAK, 10GBASE X2 and 10GBASE XFP interfaces on the same link.
Specifications
| Technical details |
|---|
| Wavelength |
1310 nm |
| Maximum transfer distance |
300 m |
| Hot-swap |
Yes |
| Harmonized System (HS) code |
85176990 |
| Performance |
|---|
| Hot-swap |
Yes |
| Wavelength |
1310 nm |
| Maximum transfer distance |
300 m |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Design |
|---|
| Country of origin |
China |
| Power |
|---|
| Power consumption (typical) |
1 W |
| Management features |
|---|
| Hot-swap |
Yes |
| Weight & dimensions |
|---|
| Width |
13.4 mm |
| Depth |
56.5 mm |
| Weight |
75 g |
| Height |
8.5 mm |
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Packaging data |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Fiber type |
MMF/SMF |
