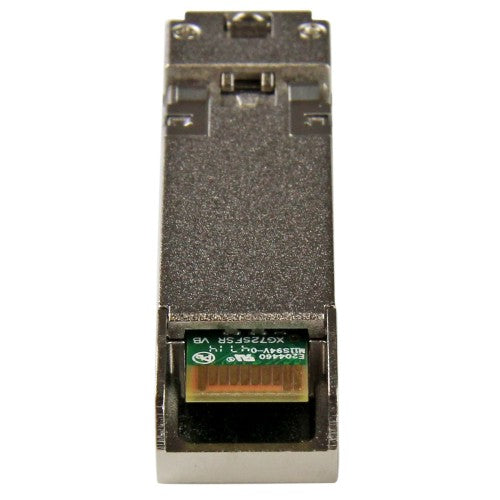

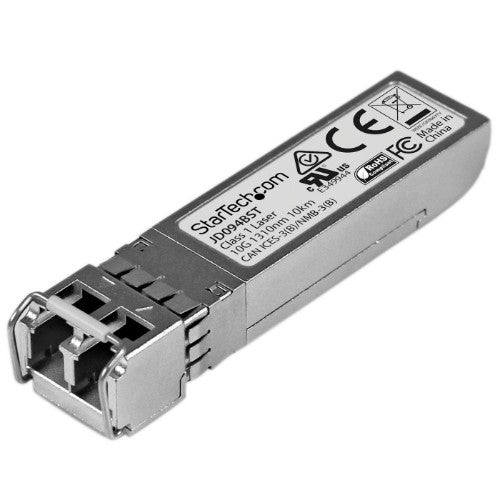

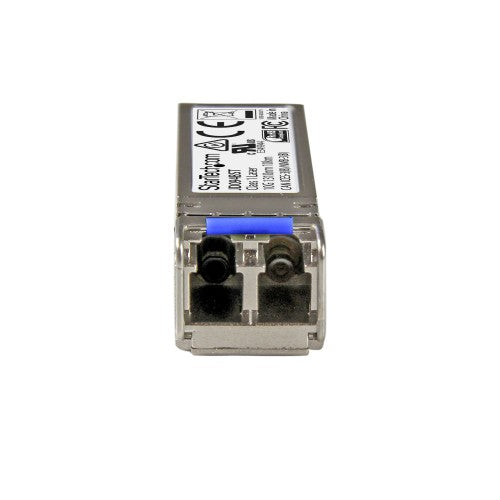

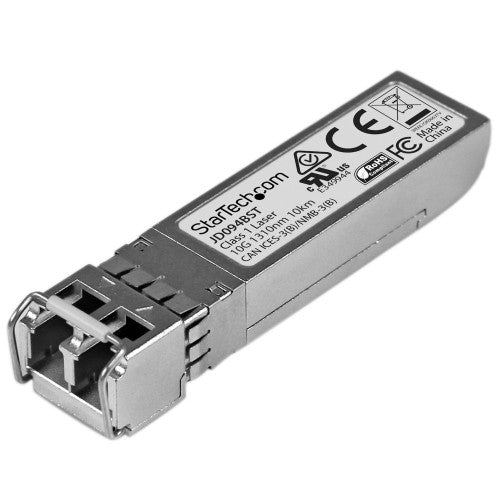

StarTech.com HPE JD094B Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode (SMF) Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM HPE 5900, 12500, 5500 (JD094BST)
The JD094BST is an HPE JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 11.1 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Key Features
- 100% HPE JD094B COMPATIBLE: Works with HPE switches like 5900, 12500, 5500, 5820, 5120 and others
- TECHNICAL SPECS: 10GBASE-LR / 10Gbps / Single Mode (SMF) / LC Connector / 1310nm / Digital Diagnostic Monitoring (DDM) / Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in HPE routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
- THE IT PRO’S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance
Description
10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime WarrantyThe JD094BST is an HPE JD094B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 11.1 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 2,104,865 hours
• Power Consumption: Less than 1.2 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
Specifications
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| SFP transceiver standard | LR |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 2104865 h |
| Country of origin | China |
| Certification | CE, FCC, UR |
| Power | |
| Power consumption (typical) | 1.2 W |
| Certificates | |
| Certification | CE, FCC, UR |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Package depth | 92 mm |
| Package width | 119 mm |
| Package height | 33 mm |
| Package weight | 49 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| Package width | 119 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Compliance certificates | RoHS |
| Packaging data | |
| Package depth | 92 mm |
| Package width | 119 mm |
| Package height | 33 mm |
| Package weight | 49 g |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Country of origin | China |
| Master (outer) case width | 340 mm |
| Master (outer) case length | 358 mm |
| Master (outer) case height | 211 mm |
| Products per master (outer) case | 55 pc(s) |
| Harmonized System (HS) code | 85369010 |
