1D & 2D, 100 fps, black, IP42
Key Features
- Possibility to expand brand presence / visibility
- 1D & 2D scanning at a speed of 100 fps
- Well thought out design for comfortable use

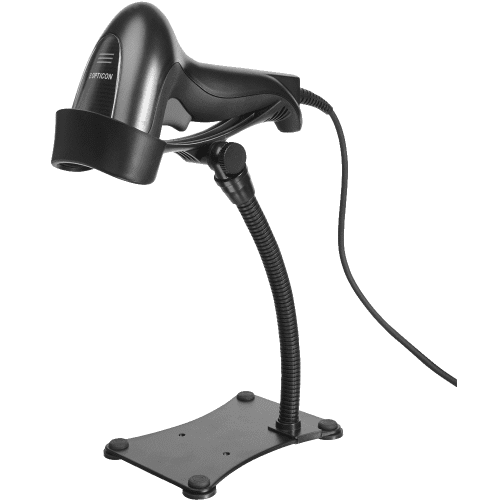

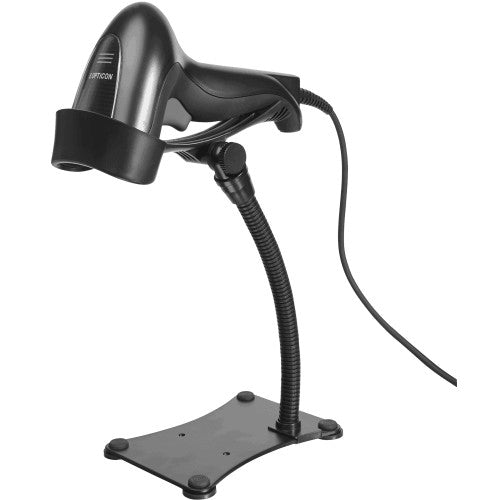

- Comes with a stand for hands free scanning
Description
The L-51X is the successor of the L-50X and comes with an even more advanced 2D imager. With more brand visibility and a speed of 100 fps the engine in the L-51X is truly next gen, but maybe the most important part is not the technology inside but the design on the outside, where the L-51X gives you the option to insert your own logo or design of your choosing.
Applications
The L-51X is often used in service settings; healthcare for wristband scanning, retail for scanning products and scanning e-tickets from mobile phones at festivals or other social gatherings. The usage often decides what type of engine should be inside the scanner. Because of the complementary stand, that activates the auto trigger, it is often used to scan without hands.
How we describe the L-51X

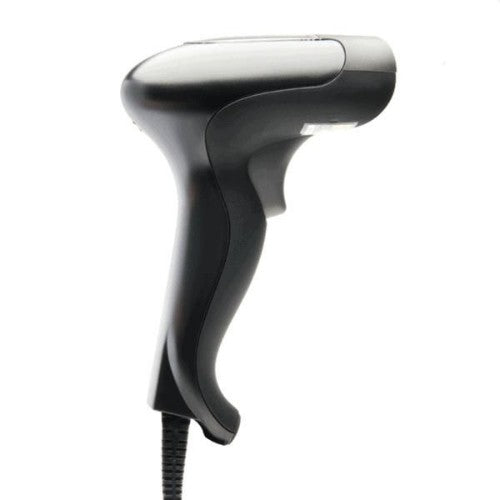

The L-51X is a pistol-grip designed cabled scanner with a very advanced 2D imager that scans at a speed of 100 fps. Furthermore, the design makes it possible to add your own design, image or logo to the top of the scanner, this way you can use the product to expand your brand visibility or presence. This addition is truly unique and as far as we are aware only Opticon offers this option.
Moreover, this handheld scanner comes with USB or RS232 and a complimentary stand for hands free scanning. The product is sealed with a rating of IP 42 that can withstand drops from up to 1.5 meters upon concrete. The scanner gives visual and non-visual feedback when a scan action is performed, telling you if the scanning action succeeded or not.
Specifications
| Scanning |
|---|
| Type |
Handheld bar code reader |
| Linear (1D) barcodes supported |
Codabar,Code 11,Code 128,Code 39,GS1 DataBar,GS1 DataBar Expanded,GS1 Databar Limited,GS1-128 (UCC/EAN-128),IATA,ISBN,ISSN,Industrial 2 of 5,Interleaved 2 of 5,JAN,MSI,Matrix 2 of 5,Plessey,S-Code,Telepen,Trioptic,U.P.C. |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Codablock, Data Matrix, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Sensor type |
CCD |
| Scanner type |
1D/2D |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Cable length |
2 m |
| Standard interfaces |
RS-232,USB |
| Performance |
|---|
| Protection features |
Vibration proof |
| LED indicators |
Yes |
| Keys quantity |
1 keys |
| Built-in processor |
Yes |
| Processor frequency |
800 MHz |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Processor architecture |
ARM Cortex-A7 |
| Design |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Vibration proof |
| LED indicators |
Yes |
| Keys quantity |
1 keys |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
|---|
| Power source type |
RS-232,USB |
| Battery capacity |
400 mAh |
| Weight & dimensions |
|---|
| Base dimensions |
106 x 323 x 146 mm |
| Width |
75.4 mm |
| Depth |
121.5 mm |
| Height |
169.5 mm |
| Weight |
149 g |
| Base weight |
373 g |
| Technical details |
|---|
| Type |
Handheld bar code reader |
| Protection features |
Vibration proof |
| LED indicators |
Yes |
| Keys quantity |
1 keys |
| Built-in processor |
Yes |
| Processor frequency |
800 MHz |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 60 °C |
| Operating temperature (T-T) |
-5 - 50 °C |
| Operating relative humidity (H-H) |
5 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
