Description

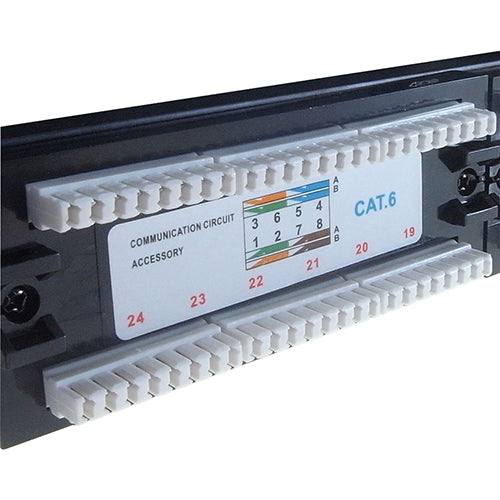

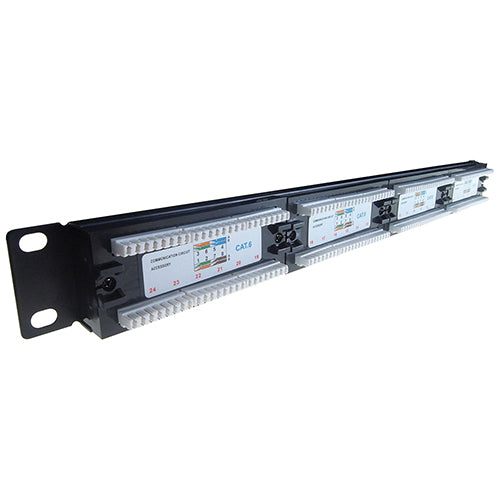

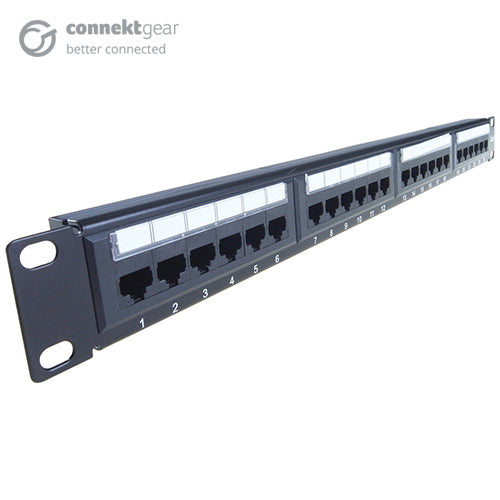

24 Port Patch Panel (Cat6) IDC Punch Down 19 inch
Key Features
- CAT 6 TIA & ISO standard
- Backward compatible with CAT 5 & CAT 5e
- Screen printed port numbering on the front of the panel
- Removable cards held in clear plastic holders on the front of the panel for personalised Identification
- Pre-printed port numbering labels on the back of the panel
- High quality pressed steel front panel construction
- Includes cages nuts and cable ties
Description
-Specifications
| Network | |
|---|---|
| Connector contacts plating | Gold |
| Ethernet interface type | Fast Ethernet |
| Maximum data transfer rate | 1000 Mbit/s |
| Cable types supported | Cat5, Cat5e, Cat6 |
| AWG wire size | 22/26 |
| Ports quantity | 24 |
| Connector(s) | RJ-45 |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | No |
| Design | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Cable management | Yes |
| Material | ABS synthetics |
| Product colour | Black |
| Cable connection | RJ45 Male |
| Certification | REACH |
| Certificates | |
| Certification | REACH |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Weight & dimensions | |
| Width | 480 mm |
| Weight | 700 g |
| Height | 44 mm |
| Depth | 33 mm |
| Package weight | 82.5 g |
| Package width | 510 mm |
| Package height | 60 mm |
| Packaging content | |
| Number of cable ties | 4 |
| Cable tie(s) included | Yes |
| Package type | Box |
| Packaging data | |
| Package weight | 82.5 g |
| Package type | Box |
| Package depth | 92 mm |
| Package width | 510 mm |
| Package height | 60 mm |
| Features | |
| Mounting | Rack mounting |
| Rack capacity | 1U |
| Material | ABS synthetics |
| Product colour | Black |
| Certification | REACH |
| Cable connection | RJ45 Male |
| Technical details | |
| Mounting | Rack mounting |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Package width | 510 mm |
| Package height | 60 mm |
| Material | ABS synthetics |
| Cable connection | RJ45 Male |
| Compliance certificates | RoHS |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Country of origin | China |
