Description

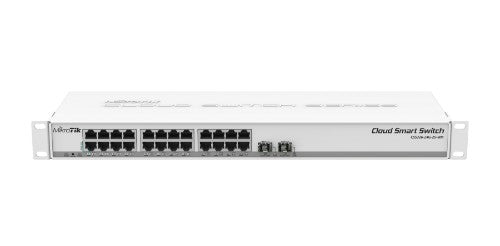

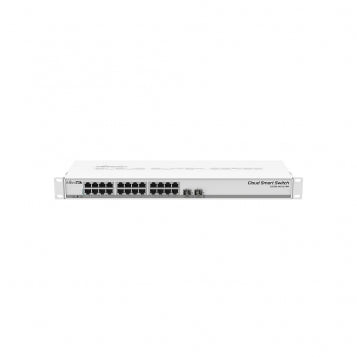

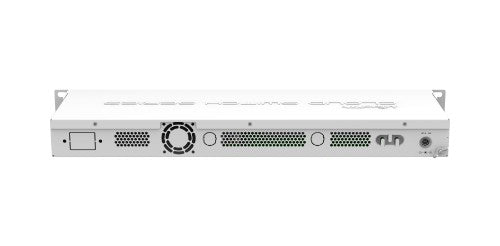

CSS326-24G-2S+RM network switch, 24x 10/100/1000 RJ-45, 2x SFP+, PoE, 440 x 144 x 44 mm, SwOS
The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Description
SwOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features.The device is powered by a Marvell DX switch chip. The device is running an operating system designed specifically for MikroTik switch products - SwOS. SwOS is configurable from your web browser. It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| Management features | |
|---|---|
| Reset button | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Security | |
| Security algorithms | SNMP |
| MAC address filtering | Yes |
| Access Control List (ACL) | Yes |
| Design | |
| Reset button | Yes |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Performance | |
| Internal memory | 2 MB |
| Flash memory | 2 MB |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| Power consumption (typical) | 19 W |
| Number of power supply units | 1 |
| Power source | DC/PoE |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) voltage range | 10 - 30 V |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 144 mm |
| Height | 44 mm |
| Packaging content | |
| Manual | Yes |

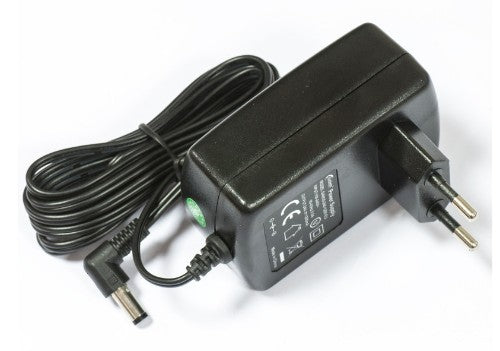

| AC adapter included | Yes |

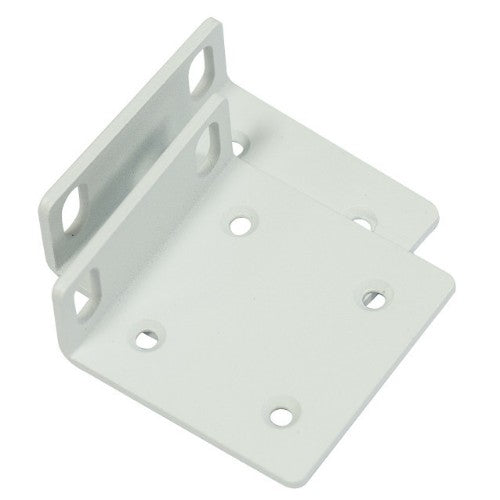

| Mounting brackets included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Mounting brackets included | Yes |
| Manual | Yes |
| Data transmission | |
| Number of VLANs | 4000 |
| Technical details | |
| Form factor | 1U |
| Product colour | White |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 2 MB |
| Flash memory | 2 MB |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
