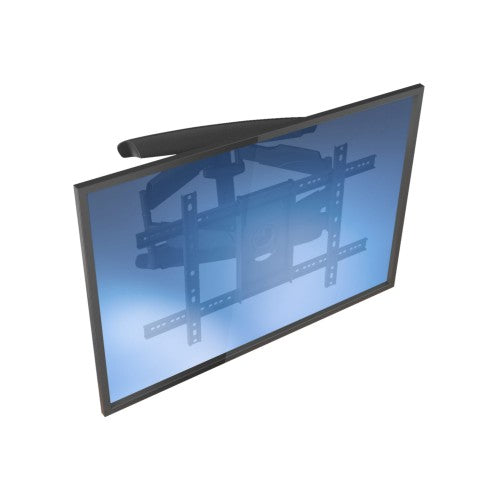

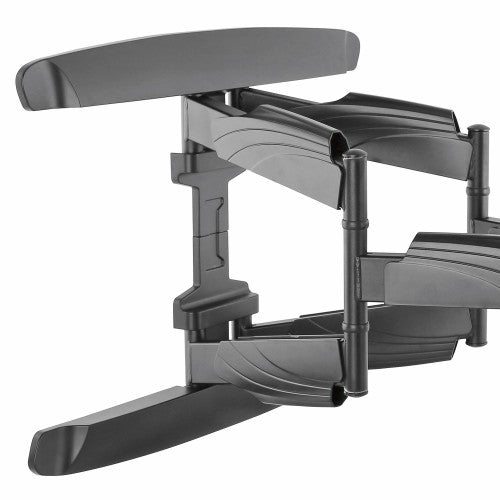

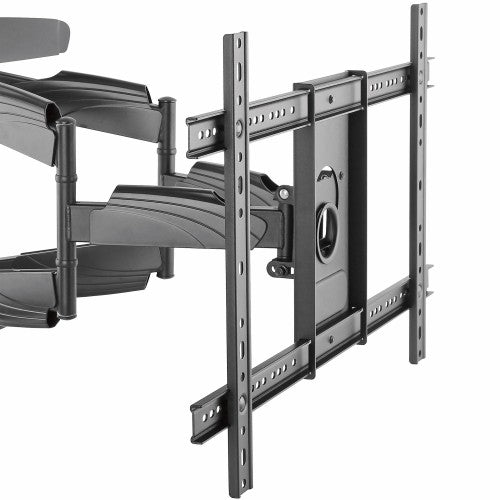

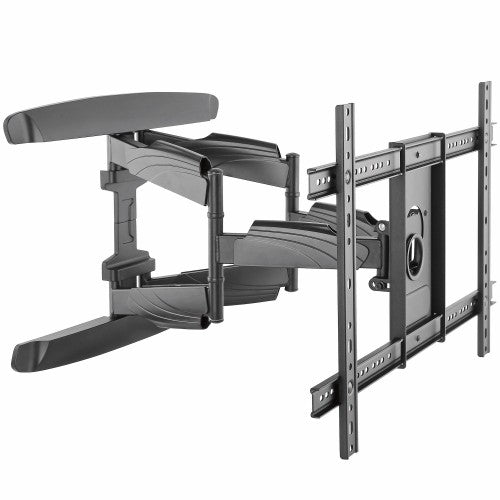

StarTech.com TV Wall Mount supports up to 70 inch VESA Displays - Low Profile Full Motion Universal TV Flat Screen Wall Mount Heavy Duty Adjustable Tilt/Swivel Articulating Arm Bracket (FPWARTB2)
Maximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).
Save Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.
Full-Motion Adjustment
The TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.

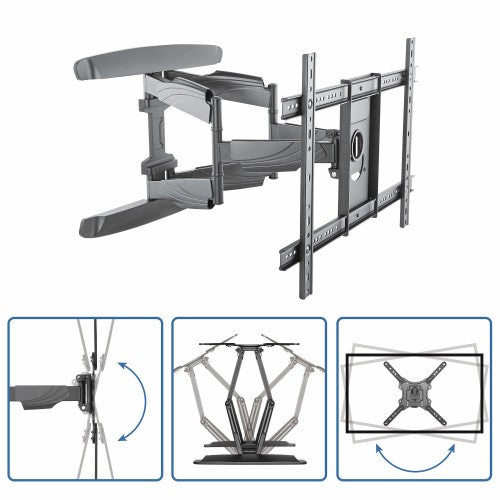

You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.
Secure Installation
The heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.
FPWARTB2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
Key Features
- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, and others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400

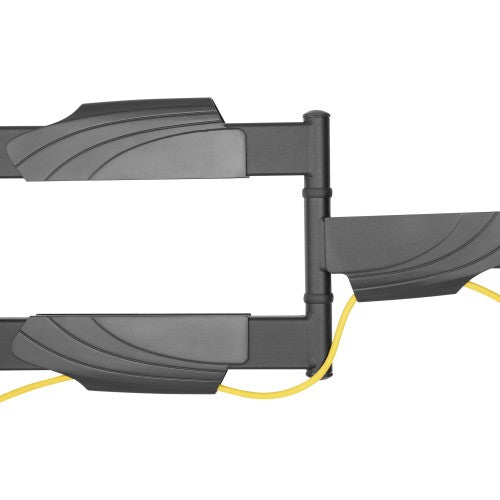

- TIDY AESTHETIC: The flat panel TV wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps cables organized; ideal for customer-facing digital signage
Description
Flat-Screen TV Mount | Steel | For 32" to 70" DisplaysMaximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).
Save Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.
Full-Motion Adjustment
The TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.
You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.
Secure Installation
The heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.
FPWARTB2 is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish
- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5° LCD screen level adjustment without the use of additional tools to ensure display is level
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
Specifications
| Mounting | |
|---|---|
| Mounting type | Wall |
| Minimum screen size | 81.3 cm (32") |
| Panel mounting interface | 200 x 100,200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400 |
| Number of displays supported | 1 |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 600 x 400 mm |
| Maximum screen size | 177.8 cm (70") |
| Maximum weight capacity | 45 kg |
| Suitable for computer monitor | Yes |
| Ergonomics | |
| Cable management | Yes |
| Tilt angle range | -8 - 5° |
| Swivel angle range | -90 - 90° |
| Pivot angle | -90 - 90° |
| Technical details | |
| Cable management | Yes |
| Pivot angle | -90 - 90° |
| Number of displays supported | 1 |
| Product colour | Black |
| Mounting type | Wall |
| Compliance certificates | RoHS |
| Design | |
| Cable management | Yes |
| Product colour | Black |
| Anti-theft function | No |
| Housing material | Plastic, Steel |

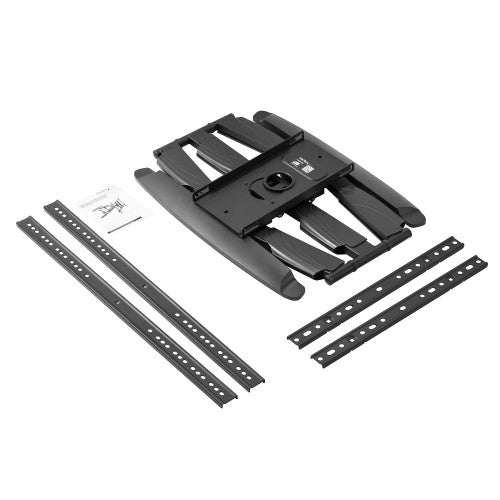

| Packaging content | |
| Screws included | Yes |
| Adapter bracket included | Yes |
| Number of adapter brackets included | 4 |
| Washers included | Yes |
| Number of washers included | 14 |
| Spacer included | Yes |
| Number of spacers included | 16 |
| Number of screws | 38 |
| Wrench included | Yes |
| Mounting kit | Yes |
| Manual | Yes |
| Number of wrenches included | 1 |
| Weight & dimensions | |
| Arm length | 64.3 cm |
| Width | 517 mm |
| Height | 418 mm |
| Weight | 6.8 kg |
| Packaging data | |
| Package width | 622 mm |
| Package depth | 415 mm |
| Package height | 90 mm |
| Package weight | 7.7 kg |
| Mounting kit | Yes |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 646 mm |
| Master (outer) case length | 433 mm |
| Master (outer) case height | 291 mm |
| Products per master (outer) case | 3 pc(s) |
| Harmonized System (HS) code | 85299097 |
| Other features | |
| Mounting type | Wall |
