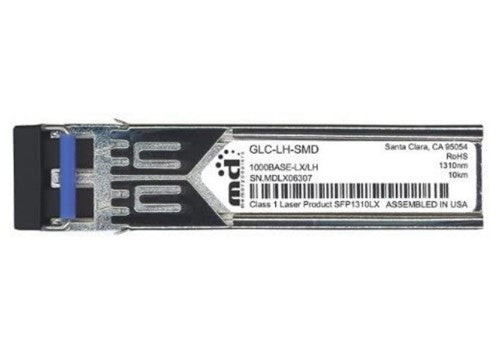

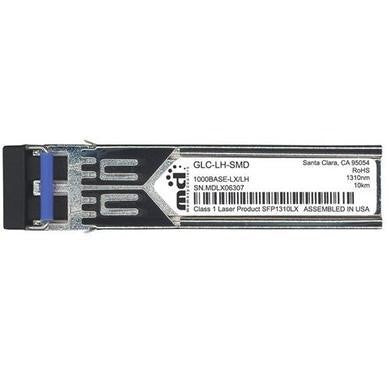

1000BASE- LX/LH SFP Module for Gigabit Ethernet Deployments, Hot Swappable, 5-Year Standard Warranty (GLC-LH-SMD=)
Key Features
- COMPATIBILITY: 1000BASE-LX/LH SFP is designed for long-reach single-mode fibres but works over multi-mode fibre as well.
- OPERATION: Operates on standard single-mode fibre-optic link spans of up to 10 km and up to 550 metres on multi-mode fibre (transmitter should be coupled through a mode conditioning patch cable when used over multi-mode fibre type)
- HOT SWAPPABLE: Plugs into an Ethernet SFP port or slot with no need to shut down if installing or replacing
- VERSATILITY: SFP receiver/transceiver module supports ‘pay-as-you-populate’ model for flexible media and interface choice on a port-by-port basis
- PEACE OF MIND: 5-year standard replacement warranty
Description

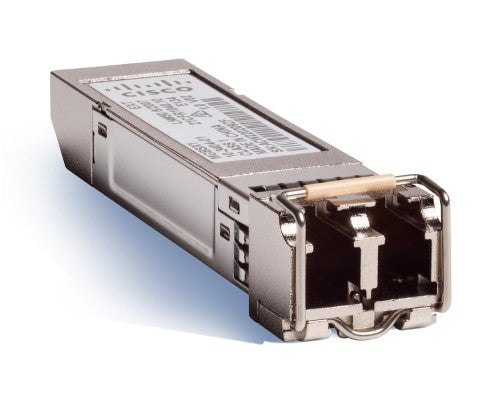

The Cisco 1000BASE-LX/LH-SMD= SFP Module is an industry-standard Small Form-Factor Pluggable (SFP) Gigabit Interface Converter that links switches and routers to the network. Featuring a robust design for enhanced reliability, this SFP receiver/transmitter module plugs into a Gigabit Ethernet port or slot and is hot-swappable to maximise uptime and simplify serviceability.
Specifications
| Network |
|---|
| Fiber optic connector |
LC, PC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Cabling technology |
1000BASE-LX,1000BASE-LH |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| Technical details |
|---|
| Package width |
143 mm |
| Package height |
44.5 mm |
| Maximum transfer distance |
10000 m |
| Wavelength |
1300 nm |
| Compatible products |
Catalyst Express 500/520
Cisco ME 3400/3600X/3800X/4900/6500
Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975
Catalyst 3560/3560-E/3560-X/3560-C |
| Cabling technology |
1000BASE-LX,1000BASE-LH |
| Performance |
|---|
| Country of origin |
China |
| Compatible products |
Catalyst Express 500/520
Cisco ME 3400/3600X/3800X/4900/6500
Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975
Catalyst 3560/3560-E/3560-X/3560-C |
| Fiber optic connector |
LC, PC |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Maximum transfer distance |
10000 m |
| Wavelength |
1300 nm |
| Cabling technology |
1000BASE-LX,1000BASE-LH |
| Maximum data transfer rate |
1000 Mbit/s |
| Interface type |
SFP |
| SFP transceiver standard |
LH, LX |
| Harmonized System (HS) code |
85369010 |
| Features |
|---|
| Country of origin |
China |
| Compatible products |
Catalyst Express 500/520
Cisco ME 3400/3600X/3800X/4900/6500
Catalyst 2940/2950/2960/2960-S/2960-C/2970/2975
Catalyst 3560/3560-E/3560-X/3560-C |
| Packaging data |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Weight & dimensions |
|---|
| Package depth |
158.8 mm |
| Package width |
143 mm |
| Package height |
44.5 mm |
| Package weight |
90.7 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85369010 |
| Quantity per pack |
1 pc(s) |
