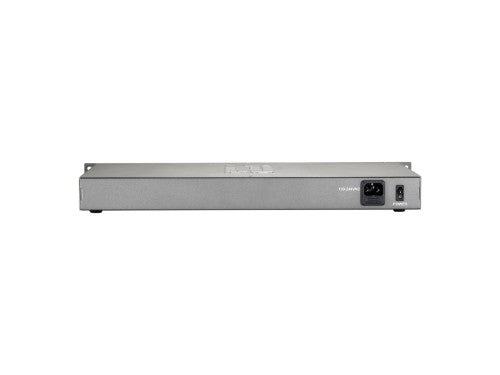

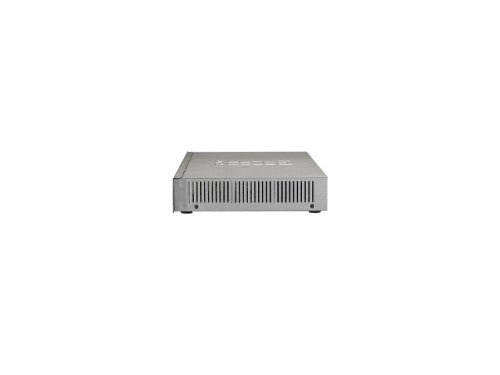

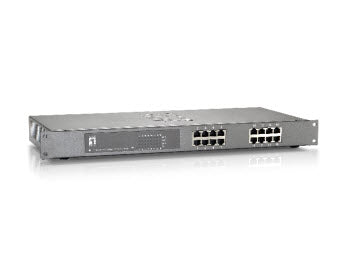

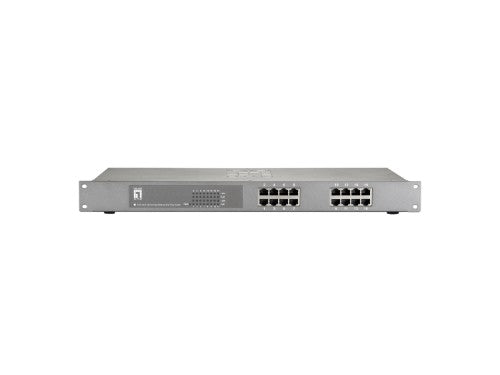

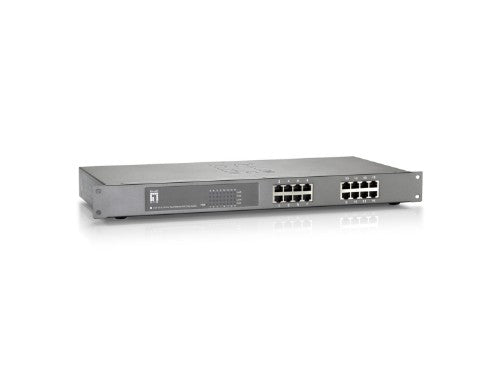

LevelOne 16-Port Fast Ethernet PoE Switch, 802.3at/af PoE, 380W

16 x RJ-45, PoE, 10/100 Mbps, 3.2 Gbps, 100-240V, 50-60Hz, 380W

Description

LevelOne FEP-1612 features 16 10/100Mbps Fast Ethernet ports with IEEE 802.3at/af PoE interfaces. It supports MDI / MDI-X convertible on 16 10/100Mbps ports and provides PoE inject function on PoE ports which are able to IEEE 802.3af or 802.3at compliant powered devices remotely.

The FEP-1612 equipped with the MDI/MDI-X auto detection for easily plug and play connection, regardless of cabling types in straight through or crossover. It also provides a simple, cost-effective, and highly reliable network connection for data and power transmission. Furthermore, it is the ideal device for bridging among Ethernet, Fast Ethernet workgroups and networks. It fits all kind of Ethernet installations such as campus, workgroup, department, enterprise, telecom or industrial applications.

The FEP-1612 features non-blocking 3.2Gbps backplane that greatly simplifies the tasks of upgrading your LAN for catering to increase bandwidth demands.

Key Features
- IEEE 802.3af/at PoE compliant to simplify deployment and installation
- Auto-detection and protection of non-standard PoE devices
- Supports 4K MAC address auto-learning and auto-aging
- 10/100Mbps, full/half-duplex, auto-negotiation, auto-MDI/MDIX
- 19-inch metal housing
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission

Specifications

Ports & interfaces
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Basic switching RJ-45 Ethernet ports quantity	16
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Performance
Auto-negotiation	Yes
Buffer size	160 KB
Plug and Play	Yes
Harmonized System (HS) code	85176990
Technical details
Product colour	Grey
Housing material	Metal
Power over Ethernet (PoE)
Power protection features	Over current
Power over Ethernet (PoE) power per port	30 W
Power over Ethernet plus (PoE+) ports quantity	16
Power over Ethernet (PoE)	Yes
Network
Cable types supported	Cat3, Cat4, Cat5
Copper ethernet cabling technology	10BASE-T, 100BASE-TX
Networking standards	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Flow control support	Yes
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
Packet forwarding rate (100 Mbps)	148000 pps
Packet forwarding rate (10 Mbps)	148000 pps
MAC address table	4000 entries
Switching capacity	3.2 Gbit/s
Store-and-forward	Yes
Certificates
Certification	CE, FCC
Design
Country of origin	Taiwan
Product colour	Grey
LED indicators	Activity, PoE, Power
Housing material	Metal
Certification	CE, FCC
Indication
LED indicators	Activity, PoE, Power
Power
Power protection features	Over current
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	380 W
Input current	5 A
Operational conditions
Storage temperature (T-T)	-40 - 75 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	200 mm
Depth	480 mm
Height	44 mm
Weight	2.85 kg
Packaging data
Package type	Box
Rubber feet	Yes
Quick start guide	Yes
Package width	260 mm
Package depth	535 mm
Package height	90 mm
Package weight	3.7 kg
Cables included	AC
Logistics data
Master (outer) case width	520 mm
Master (outer) case length	560 mm
Master (outer) case height	280 mm
Master (outer) case gross weight	19.8 kg
Products per master (outer) case	5 pc(s)
Harmonized System (HS) code	85176990
Packaging content
Rubber feet	Yes
Quick start guide	Yes
Cables included	AC
Other features
Country of origin	Taiwan
