Description

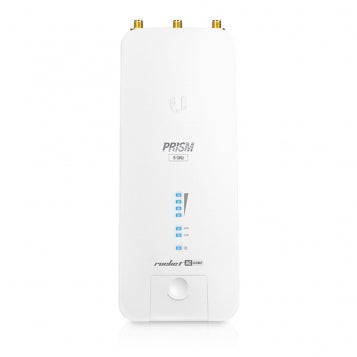

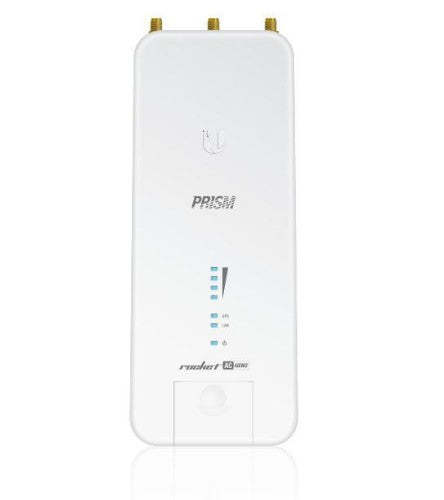

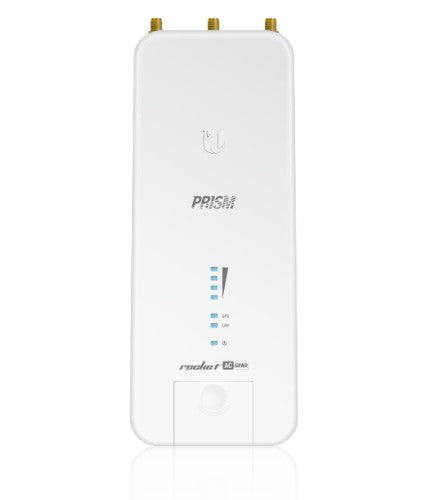

RP-5AC-Gen2, 10/100/1000 Ethernet Port, Die‑Cast Aluminum with White Powder Coating, 128 MB DDR2 SDRAM
The Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
Description
Management Wi-Fi RadioThe Rocket® Prism AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The Rocket® Prism AC features enhanced protection against ESD events.
GPS Synchronization
The Rocket® Prism AC supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.
Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.
Designed for High Performance
The Rocket® Prism AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 and 2.4 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.
The 2.4 GHz band is covered by the Rocket Prism 2AC.
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| 5 GHz | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Certification | FCC, IC, CE |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Management features | |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Software | |
| Bundled software | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Memory | |
| Internal memory | 128 MB |
| Features | |
| 5 GHz | Yes |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Internal memory | 128 MB |
| Built-in processor | Yes |
| Security | |
| Security algorithms | WPA2-AES |
| Protocols | |
| DHCP client | Yes |
| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 9.5 W |
| Power over Ethernet (PoE) | Yes |
| Input current | 1 A |
| AC input voltage | 24 V |
| Design | |
| Product colour | White |
| LED indicators | LAN, Power, Signal strength |
| Certification | FCC, IC, CE |
| Antenna | |
| Antenna connector type | RP-SMA |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Processor | |
| Built-in processor | Yes |
| Certificates | |
| Certification | FCC, IC, CE |
| Indication | |
| LED indicators | LAN, Power, Signal strength |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 40 mm |
| Weight | 400 g |
| Height | 230 mm |
| Packaging data | |
| Bundled software | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Packaging content | |
| Bundled software | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 80 °C |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
