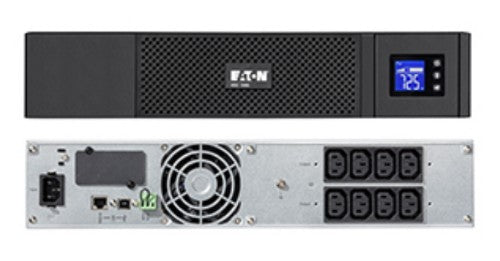

Eaton 5SC1000IR uninterruptible power supply (UPS) Line-Interactive 1 kVA 700 W 8 AC outlet(s)

5SC UPS, 1000 VA, 700 W, Input: C14, Outputs: (8) C13, Rack, 2U

Description

5SC 1000 VA Rackmodell 2HE

Specifications

Power
Output frequency regulation	45-55 Hz (50Hz system), 55-65Hz (60Hz system)
Output power	700 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Output power capacity	1 kVA
Performance
UPS topology	Line-Interactive
Power protection features	Overdischarge
Noise level	45 dB
Features
Output frequency	50/60 Hz
UPS topology	Line-Interactive
Output frequency regulation	45-55 Hz (50Hz system), 55-65Hz (60Hz system)
Output power	700 W
Input operation voltage (min)	184 V
Input operation voltage (max)	276 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Power protection features	Overdischarge
Noise level	45 dB
Output power capacity	1 kVA
Input frequency	45/55 Hz
Ports & interfaces
USB port	Yes
Serial interface	Yes
Serial interface type	RS-232
AC outlets quantity	8 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
USB 2.0 ports quantity	1
RS-232 ports	1
Design
Rack capacity	2U
Form factor	Rackmount
Product colour	Black
Safety	IEC / EN 62040-1, UL 1778
Certification	CE, CB report (TÜV)
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Technical details
Output voltage	230 V
Output frequency	50/60 Hz
Harmonized System (HS) code	85078000
Weight & dimensions
Weight	15 kg
Width	440 mm
Height	86.2 mm
Depth	405 mm
Logistics data
Harmonized System (HS) code	85078000
Certificates
Safety	IEC / EN 62040-1, UL 1778
Certification	CE, CB report (TÜV)
Other features
Output voltage	230 V
