T94J01A Wall Mount
Key Features
- For indoor and outdoor use; Impact-resistant (IK10); Robust and safe; Suitable for Axis positioning cameras and positioning units
Description

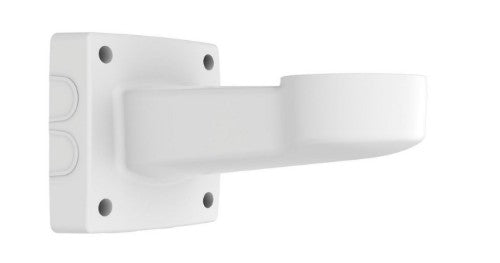

AXIS T94J01A is an aluminum wall mount suitable for Axis positioning cameras and positioning units. It is compatible with Axis ACI 3/4” conduit adapters, and offers six cable entries. Cables can be routed through the back or, by using a conduit connection, from each side or from the bottom.
Specifications
| Features |
|---|
| Housing material |
Aluminium |
| Brand compatibility |
Axis |
| Compatibility |

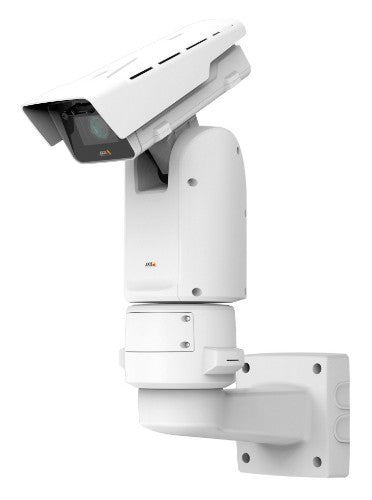

AXIS Q8641-E
AXIS Q8642-E |
| Type |
Mount |
| Placement supported |
Universal |
| Product colour |
White |
| Maximum weight capacity |
20 kg |
| Ergonomics |
|---|
| Maximum weight capacity |
20 kg |
| Technical details |
|---|
| Compatibility |
AXIS Q8641-E
AXIS Q8642-E |
| Type |
Mount |
| Placement supported |
Universal |
| Maximum weight capacity |
20 kg |
| Harmonized System (HS) code |
85299020 |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
394 mm |
| Weight |
4.5 kg |
| Height |
217 mm |
| Depth |
222 mm |
| Colour |
|---|
| Product colour |
White |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-45 - 70 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
