Description

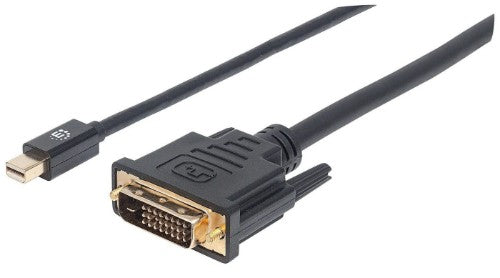

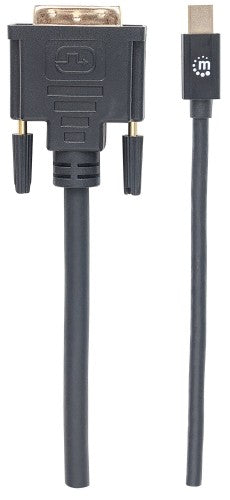

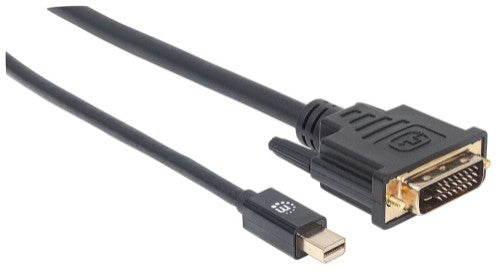

Mini DisplayPort 1.2a to DVI-D 24+1 Cable, 1080p@60Hz, 1.8m, Male to Male, Compatible with DVD-D, Black, Lifetime Warranty
_x000D_
Manhattan Mini DisplayPort 1.2a to DVI Cables help deliver the brightest, most accurate colours and sharpest detail when connecting high-definition monitors, LCD and plasma displays, digital projectors and other DVI- or DP-equipped display devices. Manhattan Mini DisplayPort 1.2a to DVI Cables are engineered and constructed of quality materials to deliver dependable signals in digital video applications. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.
Key Features

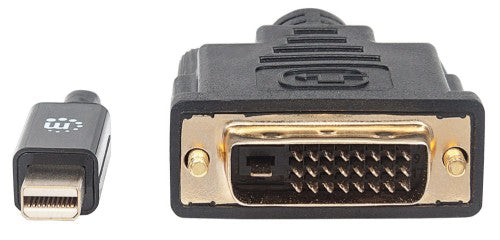

- Mini DisplayPort 1.2a male to DVI-D 24+1 male gold-plated connections
- Converts from Mini DisplayPort (DP, DP++) source to DVI-D monitor, projector or other display
- Supports existing HD (720p, 1080i and 1080p@60Hz), enhanced (480p) and standard (NTSC or PAL) video formats
- Connect to monitor, projector or other display with Extended- or Mirrored-Display modes
- Lifetime Warranty
Description
Superior connections for quality digital video performance._x000D__x000D_
Manhattan Mini DisplayPort 1.2a to DVI Cables help deliver the brightest, most accurate colours and sharpest detail when connecting high-definition monitors, LCD and plasma displays, digital projectors and other DVI- or DP-equipped display devices. Manhattan Mini DisplayPort 1.2a to DVI Cables are engineered and constructed of quality materials to deliver dependable signals in digital video applications. Full foil and braided shielding, moulded boots with strain relief, protective PVC jackets and gold-plated connections help provide maximum conductivity and clear, crisp signal transmissions with reduced distortion.
Specifications
| Features | |
|---|---|
| Converter type | Passive video converter |
| DisplayPort version | 1.2a |
| Product colour | Black |
| Cable length | 1.8 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Magnetically shielded | Yes |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Data transfer rate | 2.7 Gbit/s |
| Supported video modes | 1080p |
| HDCP | Yes |
| Certification | UL 20276 |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | Yes |
| Maximum refresh rate | 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 96% |
| Certificates | |
| Certification | UL 20276 |
| Weight & dimensions | |
| Weight | 190 g |
| Packaging data | |

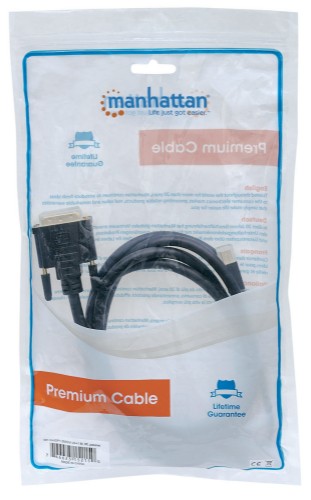

| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Package type | Polybag |
| Technical details | |
| Harmonized System (HS) code | 84733080 |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
