Description
1D/2D, CMOS, USB+RS-232, 0 - 100000lx, 150g

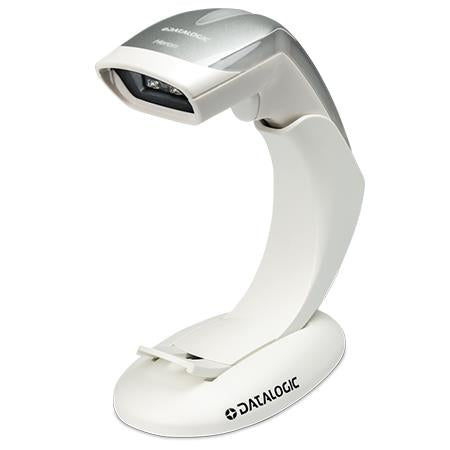

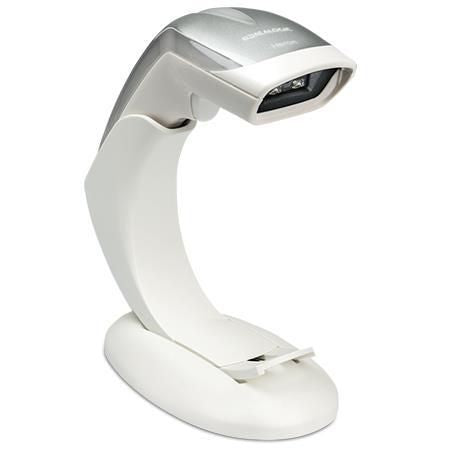

Datalogic is pleased to announce the release of the Heron HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.

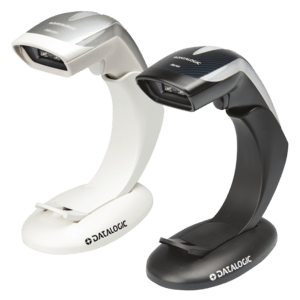

The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand.
FEATURES
Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture
Multiple changing color LEDs on sides and top
Top of the market illumination and aiming system
Polyphonic speaker for a wide variety of choices regarding audio feedback
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Automatic switching between handheld and hands-free operations
APPLICATIONS
Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
Duty-free and Airport stores
Commercial Services: Banks, Insurance Companies and Utilities
The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.
Description
OVERVIEWDatalogic is pleased to announce the release of the Heron HD3430 2D area imager with unmatched elegance and advanced technology for the modern point-of-sale.
The Heron HD3430 2D imager provides a stunning black ‘carbon-fiber’ look or a white ‘silver’ color option, emphasizing the curving lines of the Heron’s enclosure. The imager also offers opportunities to incorporate a company brand identity by allowing customers to compose the perfect blend: combining a company logo with the top cover color with customized visual and audio feedback in order to reinforce the value of the customer’s brand.
FEATURES
Outstanding reading performance on 1D, 2D, postal codes, stacked, composite codes and Image capture
Multiple changing color LEDs on sides and top
Top of the market illumination and aiming system
Polyphonic speaker for a wide variety of choices regarding audio feedback
Datalogic’s patented ‘Green Spot’ technology for good-read feedback
Automatic switching between handheld and hands-free operations
APPLICATIONS
Non-food specialty stores such as Fashion Clothes, Cosmetics, Jewelry, Perfume, etc.
Duty-free and Airport stores
Commercial Services: Banks, Insurance Companies and Utilities
The Heron HD3430 2D area imager completes the Heron family offering by adding 2D reading capability to the existing Heron readers and providing customers with an unmatched choice regarding price and bar code reading needs.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | GS1-128 (UCC/EAN-128) |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, QR Code |
| Yaw reading angle | -60 - 60° |
| Tilt reading angle | 0 - 360° |
| Sensor type | CMOS |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB version | 2.0 |
| Standard interfaces | USB, RS-232 |
| Performance | |
| Programming function | Yes |
| LED indicators | Yes |
| Product colour | White |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | White |
| Power | |
| Power consumption | 500 mA |
| Power source type | Battery |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 153 mm |
| Height | 152 mm |
| Weight | 150 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Product colour | White |
| Programming function | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
