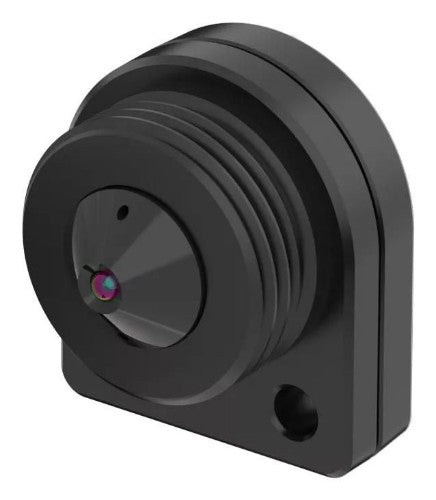

FA1125 Sensor Unit, Extremely discreet indoor surveillance in 1080p
Key Features
- Flexible, extremely discreet design for indoor use; Forensic WDR; Pinhole lens with 1080p resolution; Wide 91º horizontal field of view
Description

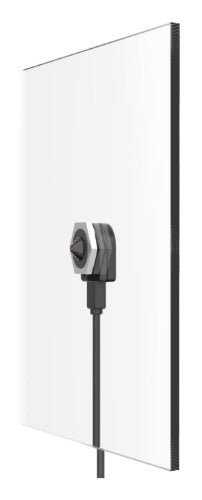

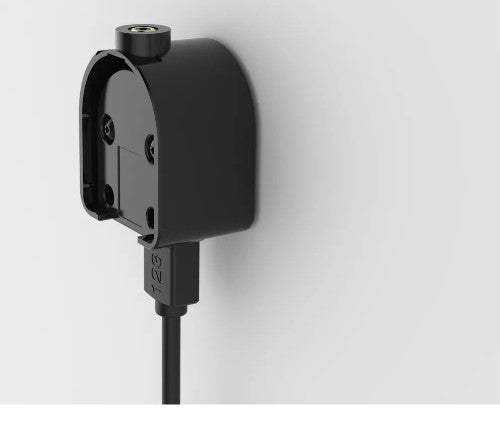

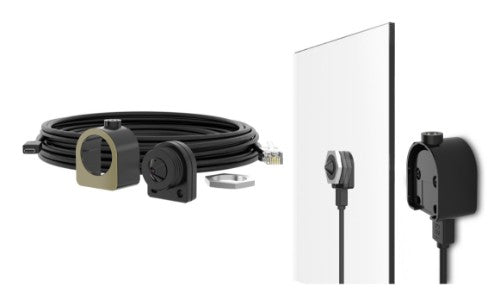

AXIS FA1125 is ideal for extremely discreet indoor surveillance applications in stores and banks, and when integrated in machines. It can be installed in tight places and flush-mounted in a wall, ceiling or metal panel with only a pinhole visible for the lens. For use with an AXIS FA Main Unit, AXIS FA1125 provides a 1080p resolution and a 91º horizontal field of view. AXIS FA1125 uses Forensic WDR (wide dynamic range) that is tuned for motion. The unit comes with a mounting bracket and an 8-m (26 ft.) cable for connection to a main unit.
Specifications
| Features |
|---|
| Housing material |
Aluminium, Plastic |
| Type |
Sensor unit |
| Placement supported |
Indoor |
| Product colour |
Black |
| Image sensor size |
1/3" |
| Sensor type |
CMOS |
| F-number (relative aperture) |
2.5 |
| Viewing angle, horizontal |
91° |
| Viewing angle, vertical |
45° |
| Resolution |
1920 x 1080 pixels |
| Cable length |
8 m |
| Image sensor |
|---|
| Image sensor size |
1/3" |
| Sensor type |
CMOS |
| F-number (relative aperture) |
2.5 |
| Viewing angle, horizontal |
91° |
| Viewing angle, vertical |
45° |
| Resolution |
1920 x 1080 pixels |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Technical details |
|---|
| Type |
Sensor unit |
| Placement supported |
Indoor |
| Harmonized System (HS) code |
85299020 |
| Weight & dimensions |
|---|
| Cable length |
8 m |
| Width |
28 mm |
| Height |
20 mm |
| Depth |
24 mm |
| Colour |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
10 - 85% |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating temperature (T-T) |
-20 - 50 °C |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299020 |
