Description

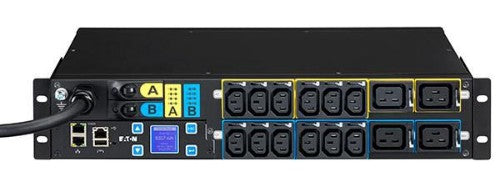

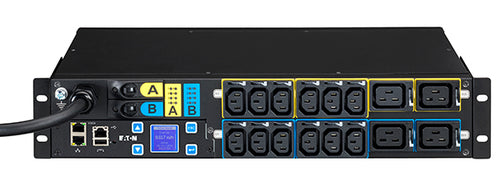

EMAH06 - MA 2U (309 32A 1P) 12XC13: 4xC19
ePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Description
Switch and meter outlets & IT equipment across A and B feed: Combines both Switched and Metered Outlet functionality together in 1 ePDUePDU G3 Managed models allow complete lights-out control and metering of devices including devices powered across multiple ePDUs. They include IEC Class 1 (±1%) billing grade accuracy, an advanced hot-swap meter with LCD pixel display showing V, W, A and kWh, and the ability to daisy chain 8 ePDUs to share the same network connection and IP address.
Specifications
| Design | |
|---|---|
| Type | Single-phase |
| PDU types | Managed |
| Mounting | Horizontal |
| Display | LCD |
| Product colour | Black |
| Form factor | Rackmount |
| Rack mounting | Yes |
| Cable colour | Black |
| Rack capacity | 2U |
| Ports & interfaces | |
| AC outlets quantity | 16 AC outlet(s) |
| AC outlet types | C13 coupler, C19 coupler |
| Power plug | IEC 60309 |
| Serial ports quantity | 1 |
| Output connections | 12 x C13 & 4 x C19 |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| Cable length | 3 m |
| LED indicators | Yes |
| Management features | |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable via | Network, USB |
| Firmware upgradeable | Yes |
| Ergonomics | |
| Cable length | 3 m |
| LED indicators | Yes |
| Display | LCD |
| Power | |
| Maximum power | 7400 W |
| Nominal input voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 32 A |
| Maximum input current per phase | 32 A |
| AC input frequency | 50 Hz |
| Weight & dimensions | |
| Dimensions (WxDxH) | 225 x 87 x 445 mm |
| Weight | 5.6 kg |
| Width | 225 mm |
| Depth | 87 mm |
| Height | 445 mm |
| Package weight | 7.8 kg |
| Packaging data | |
| Package weight | 7.8 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Technical details | |
| Compliance certificates | RoHS |
