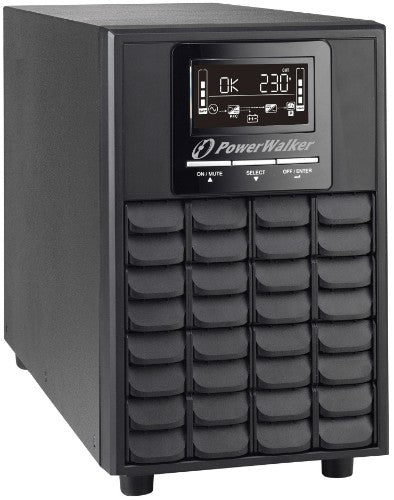

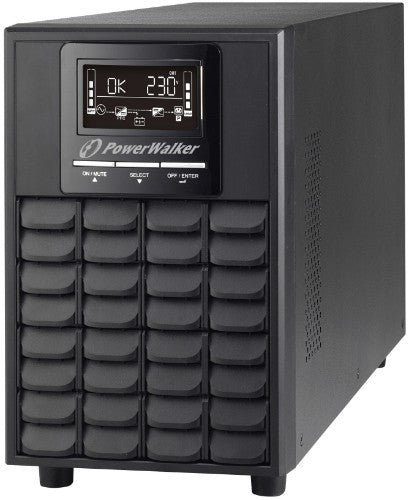

VFI 1000 CG PF1 - 1000VA, 1000W, 3:1, USB, RS-232, EPO
Description
The PowerWalker VFI 1000-10000 CG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0). The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support. 1-3kVA are equipped with a very strong charger with adjustable current and 6-10kVA can present very low harmonic distortions (<1%) and high efficiency (up to 94%).
Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software.
Specifications
| Power |
|---|
| Output voltage regulation |
1% |
| Output power |
1000 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
89% |
| Emergency Power Off (EPO) |
Yes |
| Power factor |
0.99 |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Input current Total Harmonic Distortion (THD) |
1.6% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network |
| Noise level |
50 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output voltage regulation |
1% |
| Output power |
1000 W |
| Input operation voltage (min) |
110 V |
| Input operation voltage (max) |
300 V |
| Output operation voltage (min) |
200 V |
| Output operation voltage (max) |
240 V |
| Efficiency |
89% |
| Surge protection |
Yes |
| Surge protection features |
Fax, Modem, Network |
| Emergency Power Off (EPO) |
Yes |
| Power factor |
0.99 |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| Noise level |
50 dB |
| Input current Total Harmonic Distortion (THD) |
1.6% |
| Crest factor |
3:1 |
| Output power capacity |
1 kVA |
| Input frequency |
40/70 Hz |
| Package type |
Box |

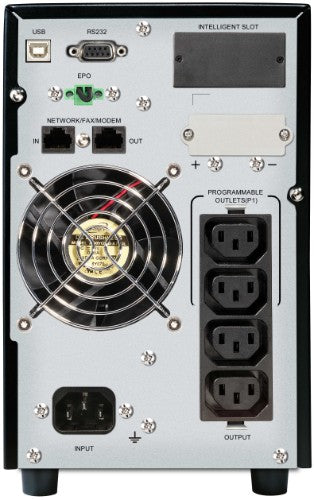

| Ports & interfaces |
|---|
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| AC outlets quantity |
4 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Battery |
|---|
| Number of batteries supported |
3 |
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery recharge time |
3 h |
| Typical backup time at half load |
12.9 min |
| Typical backup time at full load |
4.5 min |
| Design |
|---|
| Form factor |
Tower |
| Product colour |
Black |
| Cooling type |
Active |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
20 - 95% |
| Technical details |
|---|
| Harmonized System (HS) code |
85078000 |
| Cooling |
|---|
| Cooling type |
Active |
| Weight & dimensions |
|---|
| Package type |
Box |
| Package width |
230 mm |
| Package depth |
472 mm |
| Package height |
325 mm |
| Weight |
13 kg |
| Width |
145 mm |
| Package weight |
15 kg |
| Height |
221 mm |
| Depth |
397 mm |
| Packaging data |
|---|
| Cables included |
Input power cable, Output power cable, USB cable |
| Resource CD |
Yes |
| Manual |
Yes |
| Package type |
Box |
| Warranty card |
Yes |
| Package width |
230 mm |
| Package depth |
472 mm |
| Package height |
325 mm |
| Bundled software |
ViewPower |
| Package weight |
15 kg |
| Packaging content |
|---|
| Cables included |
Input power cable, Output power cable, USB cable |
| Resource CD |
Yes |
| Manual |
Yes |
| Warranty card |
Yes |
| Bundled software |
ViewPower |
