Description

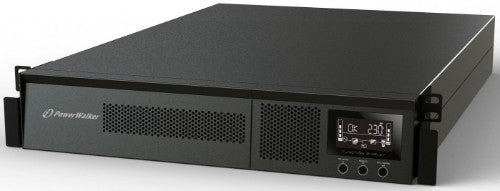

VFI 1000 RMG PF1 - 1000VA, 1000W, 3:1, USB, RS-232, EPO

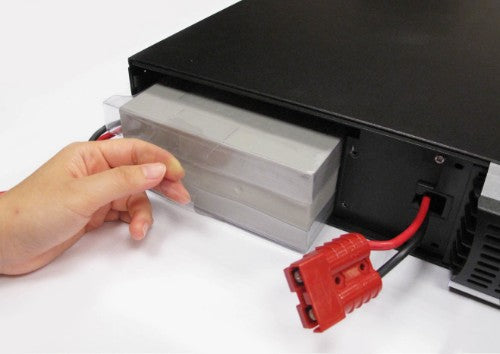

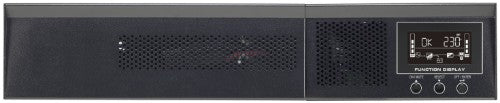

Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
Description
The PowerWalker VFI 1000-3000 RMG PF1 is a professional series for commercial applications featuring unity Power Factor (PF=1.0) and very strong charger with adjustable current. The wide input voltage and frequency ranges allow operation in unstable networks and provide generator support.Multiple accessories, including battery packs and communication cards, enhance the functionality of the UPS and allow a greater backup time. The system can be monitored locally via an LCD panel or remotely via the PowerWalker ViewPower software. With its slim design it only requires 2U valuable space of your rack system. The UPS can be installed in 19” rack systems or used as tower.
Specifications
| Power | |
|---|---|
| Output voltage regulation | 1% |
| Output power | 1000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 1.6% |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network |
| Noise level | 50 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output voltage regulation | 1% |
| Output power | 1000 W |
| Input operation voltage (min) | 110 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Surge protection | Yes |
| Surge protection features | Fax, Modem, Network |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.99 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Input current Total Harmonic Distortion (THD) | 1.6% |
| Crest factor | 3:1 |
| Output power capacity | 1 kVA |
| Input frequency | 40/70 Hz |
| Package type | Box |
| Ports & interfaces | |
| Emergency Power Off (EPO) connector | Yes |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Number of type F outputs | 8 |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Battery | |
| Number of batteries supported | 3 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery recharge time | 3 h |
| Typical backup time at half load | 12.9 min |
| Typical backup time at full load | 4.5 min |
| Design | |
| Rack capacity | 2U |
| Form factor | Rackmount |
| Product colour | Black |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package type | Box |
| Package width | 500 mm |
| Package depth | 560 mm |
| Package height | 180 mm |
| Weight | 14.1 kg |
| Width | 438 mm |
| Package weight | 17.6 kg |
| Height | 88 mm |
| Depth | 410 mm |
| Packaging data | |
| Cables included | Input power cable, Output power cable, USB cable |
| Resource CD | Yes |
| Manual | Yes |
| Package type | Box |
| Warranty card | Yes |
| Package width | 500 mm |
| Package depth | 560 mm |
| Package height | 180 mm |
| Bundled software | ViewPower / ViewPowerMini |
| Package weight | 17.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | Input power cable, Output power cable, USB cable |
| Resource CD | Yes |
| Manual | Yes |
| Warranty card | Yes |
| Bundled software | ViewPower / ViewPowerMini |
