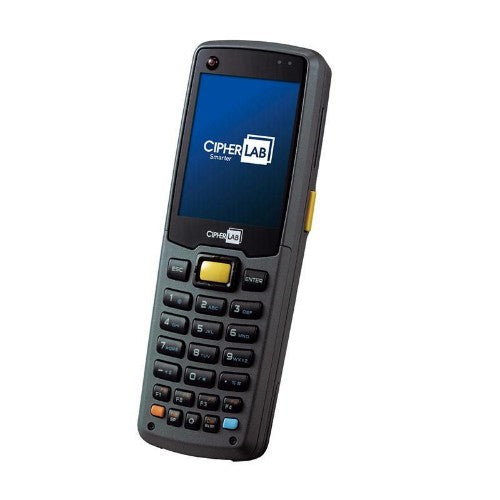

ARM Cortex-M3, 2.83in. LCD 240 x 320, 16MB SRAM, 16MB Flash, 1100mAh, CipherLab Operating System (cOS)
Description
Well protected with IP65 standards and 1.8 m drop resistance, the 8600 series mobile computer is specifically designed with top durability and able to capture data from harsher environments. The handheld terminal is equipped with flexible WLAN 802.11 b/g/n and Bluetooth® 4.0, it can deliver real time data transmission more efficiently. Versatile reader options including optional RFID reader allows for wider data collection. New software like Forge Application Generator, Remote Console and Text Browser provides simple development tool, remote management and more web-based application support. The 8600 series mobile computer also comes with swappable keypads and modular charging and communication system which provide various combinations to meet your requirements.
Specifications
| Display |
|---|
| Display |
LCD |
| Touchscreen |
No |
| Display resolution |
240 x 320 pixels |
| Display diagonal |
7.19 cm (2.83") |
| Memory |
|---|
| Internal memory |
0.016 GB |
| ROM capacity |
16 MB |
| Internal memory type |
RAM |
| Compatible memory cards |
MicroSD (TransFlash), SDHC |
| Network |
|---|
| Data network |
Not supported |
| Bluetooth |
No |
| Wi-Fi |
No |
| GPS Performance |
|---|
| GPS (satellite) |
No |
| Camera |
|---|
| Built-in camera |
No |
| Performance |
|---|
| RFID reader |
No |
| Barcode reader |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black, Grey |
| Phone function |
No |
| Vibrating alert |
Yes |
| Keyboard layout |
Numeric |
| Certification |
FCC, CE, BSMI, NCC, RCM, IC, CCC, SRRC, JRL, RoHS, REACH, WEEE, ErP |
| Software |
|---|
| Operating system installed |
CipherLab Operating System (cOS) |
| Power |
|---|
| Battery voltage |
3.7 V |
| Battery capacity |
1100 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Weight & dimensions |
|---|
| Width |
60 mm |
| Depth |
30 mm |
| Height |
170 mm |
| Weight |
240 g |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-10 - 60 °C |
| Wireless LAN features |
|---|
| Wi-Fi |
No |
| Data transmission |
|---|
| Data network |
Not supported |
| Bluetooth |
No |
| Technical details |
|---|
| RFID reader |
No |
| Barcode reader |
Yes |
| International Protection (IP) code |
IP65 |
| Product colour |
Black, Grey |
| Phone function |
No |
| Vibrating alert |
Yes |
| Keyboard layout |
Numeric |
| Certification |
FCC, CE, BSMI, NCC, RCM, IC, CCC, SRRC, JRL, RoHS, REACH, WEEE, ErP |
