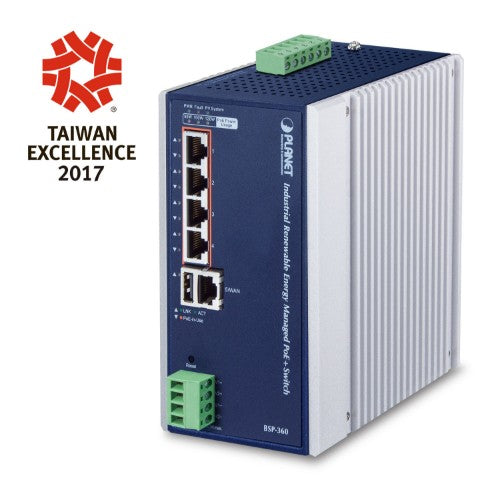

Industrial Renewable Power 5-Port Gigabit Managed Switch/Router with 4-Port 802.3at PoE+
Key Features
- Physical Port
- 5-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE injector function (Port 1 to Port 4)
- RJ45 type interface for basic management and setup
- USB type A female for setting file backup and restoration
- Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus end-span PSE
- Backward compatible with IEEE 802.3af Power over Ethernet
- Up to 4 ports of IEEE 802.3af/802.3at devices powered
- Supports PoE power up to 30 watts for each PoE port
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters
- PoE management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD alive check
- PoE schedule
- Battery Management
- Battery type option: lead-acid battery
- Easy diagnostic of the system operating status via LED indicator
- Current battery usage status
- Low voltage cut-off protection: Send alert and cut off power when the battery is low
- MPPT (Maximum Power Point Tracking) Charge Controller
- Reverse current protection to prevent the current circuits from flowing back to the PV panel
- Over-current and over-temperature protection
- Reverse polarity protection (for battery and charging electrodes)
- Industrial Case and Installation
- IP30 aluminum case
- DIN-rail and wall-mounted designs
- Supports -10 to 60 degrees C operating temperature
- Supports ESD 6KV DC Ethernet protection
- Redundant power supply
- 24V~45V DC wide power input
- Switching
- Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- 8K MAC address table size
- Automatic address learning and address aging
- Router
- Internet types: Dynamic IP, static IP, PPPoE, L2TP, PPTP
- Static and dynamic (RIP1 and 2) routing
- IP/MAC-based bandwidth control
- Supports Port Forwarding, DMZ, UPnP and Dynamic DNS for various networking applications
- 802.1d STP and IGMP Proxy
- Security
- Port filtering allows which application can access the Internet
- MAC filtering allows you to include or exclude computers and devices based on their MAC address
- URL filtering allows you to control access to Internet websites in an URL list
- IP source guard prevents IP spoofing attacks
- DoS attack prevention
- Management
- Switch Management Interface
- IPv4 Web switch management
- SNMP v1, v2c
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP
- Configuration upload/download through HTTP
- Hardware-based reset button for system reboot or reset to factory default
- Network Time Protocol
- SNMP trap for Link Up and Link Down notification
- Event message logging to remote syslog server
- Supports PLANET ONVIF IP camera and snapshot function
- PLANET Smart Discovery Utility
- Supports PLANET NMS-360 Network Management Controller
Description
Industry-leading Integration of PoE Technology and Renewable Power System
PLANET’s newly-launched Renewable Energy Industrial 802.3at PoE Managed Ethernet Switch, BSP-360, is designed for deploying a surveillance or wireless network and remotely monitoring and managing the IP-based devices. Based on its green technology, the BSP-360 can be charged by the inexhaustible and natural source of energy, such as solar, wind and hydroelectric power to conserve energy so as to economically power these remote IP cameras and wireless APs, especially used for such expansive applications as dams, forests, deserts, national parks, nature/animal protection areas and highways.
PLANET NMS-360 Network Management Controller can centrally manage up to 512 BSP-360 units and 2,048 PLANET IP cameras via MQTT and ONVIF Protocols. (Please regularly check PLANET website for the latest compatibility list of managed devices.)
MPPT (Maximum Power Point Tracking) Charge Controller
An MPPT (Maximum Power Point Tracker) is an electronic DC to DC converter that optimizes the match between the PV solar panels and the battery bank or utility grid. They convert a higher voltage DC output from solar panels (and a few wind generators) to the lower voltage needed to charge the battery effectively.
Zero-Carbon and Stable Power Supply
The nickel-cadmium or lead-acid battery gets recharged by way of the BSP-360 where solar power is sourced. Thus, the BSP-360 will keep powering PD devices without the need of any cabling. Its zero-carbon feature is made possible as the energy the unit gets is renewable. Most importantly, the operation of outdoor wireless IP-based surveillance can be continued into the night as the battery is charged during the day.
Smart Battery Management
The BSP-360 features the following special power management functions:
- Current battery usage status by percentage
- Low voltage cut-off protection
Current Battery Usage Status
The administrator can remotely access the BSP-360 to know the power status of the battery and renewable energy, and the estimated time of power consumption.
Low Voltage Cut-Off Protection
If the remaining energy is too low to power the network, the system will automatically power off the device to make sure the system works normally, and an alert is then sent to the administrator at the same time.
Smart PoE PD Management including PLANET ONVIF IP carmera
As it is the managed PoE switch for surveillance, wireless and VoIP networks, the BSP-360 features the following special PoE management functions:
- PD alive check
- Scheduled power recycling
- PoE schedule
- PoE usage monitoring
ONVIF management functions:
- Supports PLANET ONVIF IP camera discovery
- A maximum of four PLANET ONVIF IP cameras can be powered by one BSP-360 switch.
- Supports IP camera snapshot function in the LAN.
Intelligent Powered Device Alive Check
The BSP-360 can be configured to monitor connected PD (Powered Device) status in real time via ping action. Once the PD stops working and responding, the BSP-360 will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.
Scheduled Power Recycling
The BSP-360 allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specific time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.
PoE Schedule for Energy Saving
Under the trend of energy saving worldwide and contributing to environmental protection, the BSP-360 can effectively control the power supply besides its capability of giving high watts power. The “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and budget. It also increases security by powering off PDs that should not be in use during non-business hours.
PoE Usage Monitoring and Intelligent LED Indicator for Real-time PoE Usage
Via the power usage chart in the web management interface, the BSP-360 enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities. Moreover, the BSP-360 helps users to monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. Called “PoE Power Usage”, the front panel of the BSP-360 has three LED indicators of different power usages.
User-friendly and Secure Management
For efficient management, the BSP-360 is equipped with web and SNMP management interfaces. With the built-in web-based management interface, the BSP-360 offers an easy-to-use, platform-independent management and configuration facility. By supporting the standard SNMP, the switch can be managed via any standard management software.
Specifications
| Management features |
|---|
| Reset button |
Yes |
| Switch type |
Managed |
| Web-based management |
Yes |
| Network |
|---|
| IGMP snooping |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
| Full duplex |
Yes |
| Spanning tree protocol |
Yes |
| Modulation |
PWM |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Half duplex |
Yes |
| Performance |
|---|
| Auto-negotiation |
Yes |
| Buffer size |
512 KB |
| Firmware upgradeable |
Yes |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Product colour |
Blue, White |
| Firmware upgradeable |
Yes |
| Power over Ethernet (PoE) |
|---|
| Power protection features |
Short circuit |
| Power over Ethernet (PoE) power per port |
30 W |
| Total Power over Ethernet (PoE) budget |
120 W |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| USB 2.0 ports quantity |
1 |
| Data transmission |
|---|
| Throughput |
5.95 Mpps |
| MAC address table |
8000 entries |
| Switching capacity |
10 Gbit/s |
| Store-and-forward |
Yes |
| Security |
|---|
| Security algorithms |
SNMP |
| MAC address filtering |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP server |
| Certificates |
|---|
| Certification |
FCC Part 15 Class A, CE |
| Design |
|---|
| Wall mountable |
Yes |
| International Protection (IP) code |
IP30 |
| Reset button |
Yes |
| DIN rail mounting |
Yes |
| Product colour |
Blue, White |
| LED indicators |
Activity, Fault, Link, Power, System |
| Certification |
FCC Part 15 Class A, CE |
| Indication |
|---|
| LED indicators |
Activity, Fault, Link, Power, System |
| Power |
|---|
| Output voltage |
24 V |
| Output current |
1 A |
| Power protection features |
Short circuit |
| Power consumption (typical) |
135.36 W |
| Input voltage |
60 V |
| Input current |
6 A |
| DC input voltage |
24 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
461.5 BTU/h |
| Weight & dimensions |
|---|
| Width |
89 mm |
| Depth |
107 mm |
| Height |
152 mm |
| Weight |
1.03 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Input voltage |
60 V |
