Smart Array P212/256 1-ports Int/1-ports Ext PCIe x8 SAS Controller, Refurbished
Description

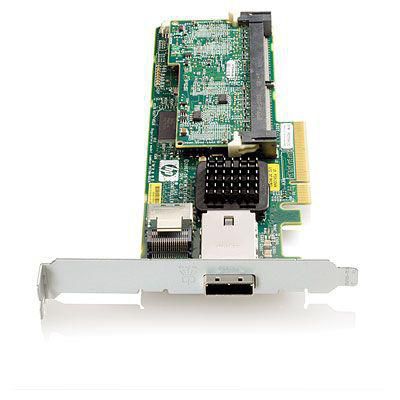

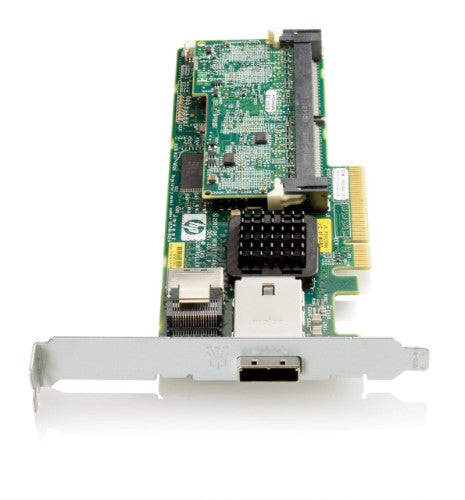

The HPE Smart Array P212 is HPE's entry level PCI Express (PCIe) Serial Attached SCSI (SAS) RAID controller. The low profile, half height card has 8 ports and utilizes DDR2-800 memory. The P212 is ideal for RAID 0, 1, 1+0, and can be upgraded with 256 MB Cache module for RAID 5, 5+0 and additionally with Battery Kit and Smart Array Advanced Pack (SAAP) license key for RAID 6 (ADG), & 6+0.
Specifications
| Ports & interfaces |
|---|
| Supported storage drive interfaces |
SAS, Serial ATA |
| Host interface |
PCI Express x8 |
| PCI Express slots version |
2.0 |
| Internal mini-SAS ports |
1 |
| External mini-SAS ports |
1 |
| Memory |
|---|
| Internal memory |
256 MB |
| Performance |
|---|
| RAID levels |
0, 1, 1+0, 5, 5+0, 6, 6+0 |
| Internal memory |
256 MB |
| Data transfer rate |
6 Gbit/s |
| Data transmission |
|---|
| Data transfer rate |
6 Gbit/s |
| Technical details |
|---|
| RAID levels |
0, 1, 1+0, 5, 5+0, 6, 6+0 |
| Weight & dimensions |
|---|
| Width |
190.5 mm |
| Depth |
241.3 mm |
| Height |
57.2 mm |
