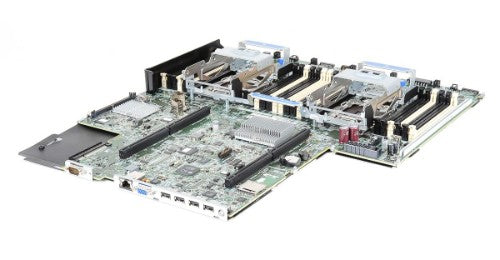

System I/O board (motherboard), Refurbished
Description
Supports Intel Xeon E5-2600 V2 (Ivy Bridge) and E5-2600 (Sandy Bridge) processors. Includes sub pan, cables, left and right cable routing guides, and instruction card. Processors must be the same spare part number.
Specifications
| Technical details |
|---|
| Number of processors supported |
2 |
| Number of DIMM slots |
24 |
| Component for |
Server |
| Total number of SATA connectors |
1 |
| Performance |
|---|
| Component for |
Server |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Compatible processor series |
Intel® Xeon® |
| Intel Xeon series |
E5-2600 |
| Processor socket |
LGA 2011 (Socket R) |
| Processor number of cores supported |
2, 4, 6, 8 |
| Memory |
|---|
| Supported memory types |
DDR3-SDRAM |
| Supported memory clock speeds |
1066,1333,1600 MHz |
| Supported RDIMM clock speeds |
1333 MHz |
| Supported UDIMM clock speeds |
1333,1600 MHz |
| Maximum internal memory |
768 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces |
Serial Attached SCSI (SAS) |
| Internal I/O |
|---|
| Total number of SATA connectors |
1 |
| Supported storage drive interfaces |
Serial Attached SCSI (SAS) |
| USB 2.0 connectors |
1 |
| Rear panel I/O ports |
|---|
| USB 2.0 ports quantity |
4 |
| VGA (D-Sub) ports quantity |
1 |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| Component for |
Server |
| Expansion slots |
|---|
| PCI Express x8 (Gen 3.x) slots |
3 |
| PCI Express x16 (Gen 3.x) slots |
4 |
| Other features |
|---|
| PCI Express x8 (Gen 3.x) slots |
3 |
| Supported RDIMM clock speeds |
1333 MHz |
| Supported UDIMM clock speeds |
1333,1600 MHz |
| Number of processors supported |
2 |
| Number of DIMM slots |
24 |
| Intel Xeon series |
E5-2600 |
| Supported LRDIMM clock speeds |
1066 MHz |
