Description

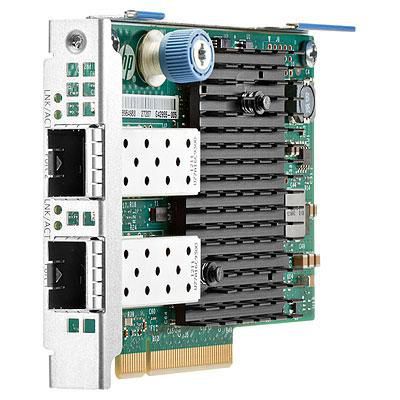

HP Ethernet 10Gb 2-port 560FLR-SFP+ Adapter
The HP 560FLR-SFP+ adapter enables connections with Direct Attach Copper cables as well as SR fiber optic modules. The HP 560FLR-SFP+ supports high performance networking features such as VLAN tagging, Low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), WOL, jumbo frames, PXE boot and virtualization features and is SR-IOV ready.
Dual-port 10Gb Ethernet PCIe Gen 2.0 , x8 lane adapter designed for maximum network performance.
• 20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate), with SFP+ cages allowing use of Direct Attach copper and SR fiber optic modules
Description
The HP Ethernet 10Gb 2-port 560 FLR-SFP+ FlexibleLOM adapter features the latest generation 10 GbE Intel® 82599 Controller. The HP 560FLR-SFP+ is a low cost, low power dual port PCIe v2.0 x8 lane adapter designed for use in HP ProLiant Gen8 Rack and scalable servers. The HP 560FLR-SFP+ addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization, scalability to keep up with the HP ProLiant Gen8 server platform, with proven and reliable performance HP customers have come to expect.The HP 560FLR-SFP+ adapter enables connections with Direct Attach Copper cables as well as SR fiber optic modules. The HP 560FLR-SFP+ supports high performance networking features such as VLAN tagging, Low latency interrupts, TCP and UDP checksum offloading, MSI-X, NIC teaming (bonding), Receive Side Scaling (RSS), WOL, jumbo frames, PXE boot and virtualization features and is SR-IOV ready.
Dual-port 10Gb Ethernet PCIe Gen 2.0 , x8 lane adapter designed for maximum network performance.
• 20 Gbps full duplex Ethernet transfer rate per port (40 Gbps aggregate), with SFP+ cages allowing use of Direct Attach copper and SR fiber optic modules
Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Network | |
| Full duplex | Yes |
| Maximum data transfer rate | 10000 Mbit/s |
| Design | |
| Internal | Yes |
| Weight & dimensions | |
| Width | 270 mm |
| Depth | 352.6 mm |
| Height | 120.7 mm |
| Weight | 2 kg |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
