Description

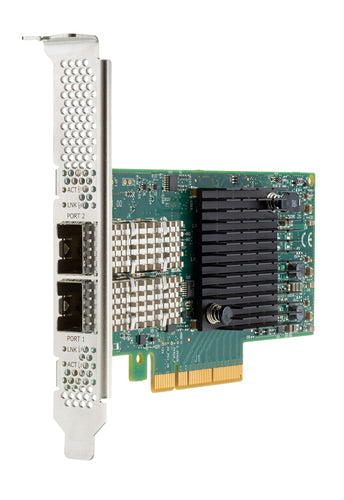

Ethernet 10/25Gb 2-port SFP28 MCX4121A-ACUT Adapter
Reduces the impact of overlay networking on host performance with tunnel offload support.
Auto negotiates to 10GbE for immediate future proofing.
Contains VMA, an included firmware with many benefits such as lower latency, higher throughput, improved CPU utilization and minimal buffer copies between user data and hardware.
Reasons To Buy
More Efficient and Faster Way to Send Data with RDMA Over Converged Ethernet (RoCE)
The HPE Ethernet 10/25Gb 2-port SFP28 CX4121B Adapter bypasses the TCP/IP stack and removes a data copy step reducing overall latency to deliver accelerated performance for applications such as Microsoft Hyper-V Live Migration, Microsoft SQL and Microsoft SharePoint with SMB Direct.Reduces the impact of overlay networking on host performance with tunnel offload support.
Auto negotiates to 10GbE for immediate future proofing.
Lower Latency and Higher Throughput With Messaging Accelerator (VMA)
The HPE Ethernet 10/25Gb 2-port SFP28 CX4121B Adapter reduces system latency for improved performance specifically for high-frequency trading operations while maintaining high message rates and hundreds of simultaneous connections.Contains VMA, an included firmware with many benefits such as lower latency, higher throughput, improved CPU utilization and minimal buffer copies between user data and hardware.
Description
Stuck in network traffic at 10Gbps? Time to take the Express Lane with HPE 25GbE Adapters. Current approaches to managing the increasing data center traffic require higher bandwidth and is cost prohibitive, restricting organizations from easily growing as their needs grow. Legacy technologies are struggling to handle the increased throughput and lack the capabilities to cost-effectively scale. For the rise in volume of mobile data and video and the frequency at which it is accessed, The HPE Ethernet 10/25Gb 2-port SFP28 CX4121B Adapter for select HPE ProLiant Server DL family of rack and HPE Apollo Servers delivers high-performance solutions. It allows Telco, services providers, financial institutions and enterprises to meet the demanding needs of more bandwidth.Specifications
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP28 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet / Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 25 Mbit/s |
| Antenna | |
| Quality of Service (QoS) support | Yes |
| Technical details | |
| Compatible products | HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6000 – XL230a Gen9 Server HPE Apollo 6000 – XL250a Gen9 Server HPE Apollo 6500 – XL270d Gen9 Server |
| Quality of Service (QoS) support | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Network | |
| Quality of Service (QoS) support | Yes |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3au, IEEE 802.3az, IEEE 802.3x |
| LAN controller | Mellanox ConnectX-4 Lx EN |
| Jumbo frames support | Yes |
| Ethernet LAN data rates | 10000,25000 Mbit/s |
| Maximum data transfer rate | 25 Mbit/s |
| Design | |
| Compatible products | HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6000 – XL230a Gen9 Server HPE Apollo 6000 – XL250a Gen9 Server HPE Apollo 6500 – XL270d Gen9 Server |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Component for | Server |
| Power | |
| Power consumption (typical) | 8.4 W |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Performance | |
| Compatible products | HPE ProLiant DL120 Gen9 Server HPE ProLiant DL160 Gen9 Server HPE ProLiant DL360 Gen9 Server HPE ProLiant DL360 Gen10 Server HPE ProLiant DL380 Gen9 Server HPE ProLiant DL380 Gen10 Server HPE ProLiant DL385 Gen10 Server HPE ProLiant DL560 Gen9 Server HPE ProLiant DL580 Gen9 Server HPE ProLiant ML350 Gen9 Server HPE Apollo 2000 - XL1x0r Gen9 Server HPE Apollo 4200 Gen9 Server HPE Apollo 4500 – XL450 Gen9 Server HPE Apollo 6000 – XL230a Gen9 Server HPE Apollo 6000 – XL250a Gen9 Server HPE Apollo 6500 – XL270d Gen9 Server |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Harmonized System (HS) code | 85176990 |
