Description

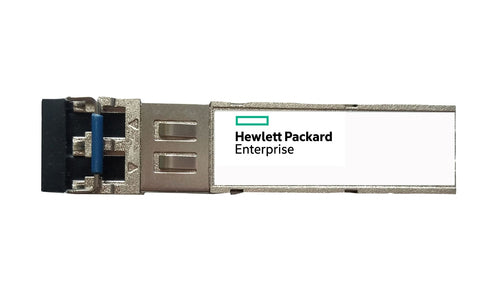

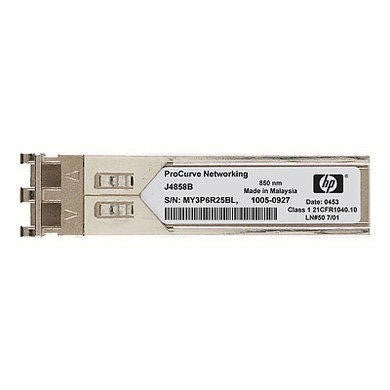

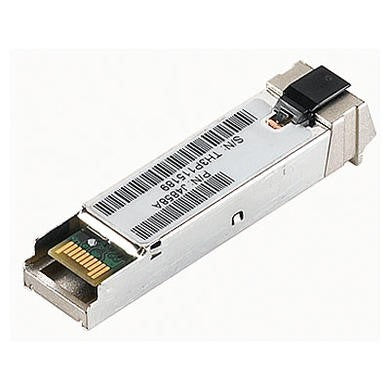

X120 1G SFP LC LX, Gigabit Etehrnet
Description
- Connectivity Media Fiber 1000Base-LX
- Data Transfer Rate 1 Gbps Gigabit Ethernet
- Interfaces/Ports 1 x 1000Base-LX
- Interfaces/Ports Details 1 x LC 1000Base-LX Network
- Application/Usage Data Networking
- Ports 1 SFP 1000Base-LX port(IEEE 802.3z Type 1000Base-LX)
- Product dimensions (W x D x H) 2.17 x 0.6 x 0.46 in.
Specifications
| Performance | |
|---|---|
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | LX |
| Compatible products | HP 6600, 8800, MSR20, MSR20-1x, MSR30, 10500, 12500, 1900, 1905, 1910, 3100 EI, 3600 EI, 3600 SI, 3610, 4210, 4210G, 4500, 4800G, 5120 EI, 5120 SI, 5500 EI, 5500 HI, 5500 SI, 5800, 5820, 5830, 5900, 5920, 7500, 9500, E5500, E5500G, WX3000, WX5000 |
| Harmonized System (HS) code | 85369010 |
| Features | |
| Compatible products | HP 6600, 8800, MSR20, MSR20-1x, MSR30, 10500, 12500, 1900, 1905, 1910, 3100 EI, 3600 EI, 3600 SI, 3610, 4210, 4210G, 4500, 4800G, 5120 EI, 5120 SI, 5500 EI, 5500 HI, 5500 SI, 5800, 5820, 5830, 5900, 5920, 7500, 9500, E5500, E5500G, WX3000, WX5000 |
| Network | |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Fiber ports quantity | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 55 mm |
| Depth | 15 mm |
| Height | 12 mm |
| Weight | 20 g |
| Technical details | |
| Compatible products | HP 6600, 8800, MSR20, MSR20-1x, MSR30, 10500, 12500, 1900, 1905, 1910, 3100 EI, 3600 EI, 3600 SI, 3610, 4210, 4210G, 4500, 4800G, 5120 EI, 5120 SI, 5500 EI, 5500 HI, 5500 SI, 5800, 5820, 5830, 5900, 5920, 7500, 9500, E5500, E5500G, WX3000, WX5000 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Logistics data | |
| Harmonized System (HS) code | 85369010 |
