Description

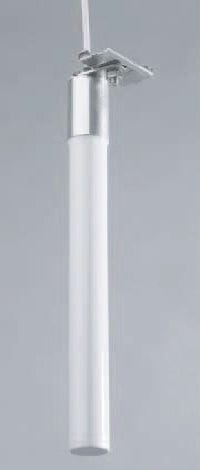

AP-ANT-19, 2.4-2.5/5.15-5.875 GHz, 3/6 dBi, 802.11b/a/g/n
While many dual-band antennas are a compromise between the two operating bands, the AP-ANT-19 provides full-band coverage and omnidirectional coverage over both bands.
Description
The wideband AP-ANT-19 antenna offers full-band coverage for 802.11b/a/g/n and includes all hardware required to mount indoors or outdoors. The antenna provides the “no compromise” performance expected from a single-band radio system in a dual-band radio.While many dual-band antennas are a compromise between the two operating bands, the AP-ANT-19 provides full-band coverage and omnidirectional coverage over both bands.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4-2.5/5.15-5.875 GHz |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 6 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Features | |
| Housing material | Polycarbonate (PC) |
| Antenna gain level (max) | 6 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4-2.5/5.15-5.875 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | <2.0:1 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |

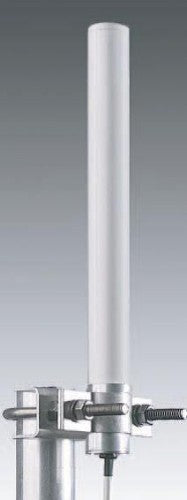

| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Product colour | White |
| Cable length | 914 m |
| Antenna gain (5 GHz) | 6 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna connector type | RP-SMA |
| Power | |
| Power consumption (max) | 10 W |
| Technical details | |
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4-2.5/5.15-5.875 GHz |
| Antenna type | Omni-directional antenna |
| Voltage Standing Wave Ratio (VSWR) | <2.0:1 |
| Purpose | Indoor & outdoor |
| Polarization | Vertical polarization |
| Mounting | Wall/Pole |
| Impedance | 50 Ω |
| Cable length | 914 m |
| Antenna gain (5 GHz) | 6 dBi |
| Antenna gain (2.4 GHz) | 3 dBi |
| Antenna connector type | RP-SMA |
| Harmonized System (HS) code | 85177100 |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11g, IEEE 802.11n |
| Colour | |
| Product colour | White |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Weight & dimensions | |
| Weight | 140 g |
| Height | 245 mm |
| Packaging content | |
| Mounting kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85177100 |
