2.4 – 2.5GHz, 5dBi, Vpol/Hpol, 50/10W, 140/260g
Description

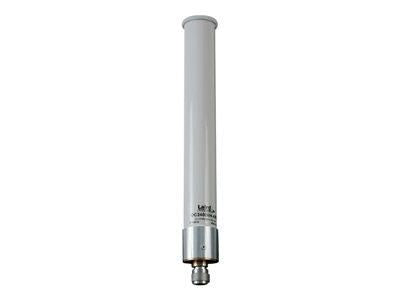

ANT-2x2-2005 is a kit of two omnidirectional antennas for use in 802.11n MIMO mesh link and client access applications. The kit contains two differently polarized antennas to be used as a 2x2 MIMO pair, and provides coverage in the 2.4-2.5 GHz frequency band.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
2.4 - 2.5 GHz |
| Impedance |
50 Ω |
| Features |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
2.4 - 2.5 GHz |
| Purpose |
Outdoor |
| Impedance |
50 Ω |
| Product colour |
White |
| Antenna connector type |
N-type |
| Technical details |
|---|
| Antenna gain level (max) |
5 dBi |
| Frequency band |
2.4 - 2.5 GHz |
| Purpose |
Outdoor |
| Impedance |
50 Ω |
| Antenna connector type |
N-type |
| Colour |
|---|
| Product colour |
White |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-30 - 70 °C |
| Storage temperature (T-T) |
-40 - 85 °C |
| Packaging content |
|---|
| Manual |
Yes |
| Quantity per pack |
2 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
2 pc(s) |
