Description

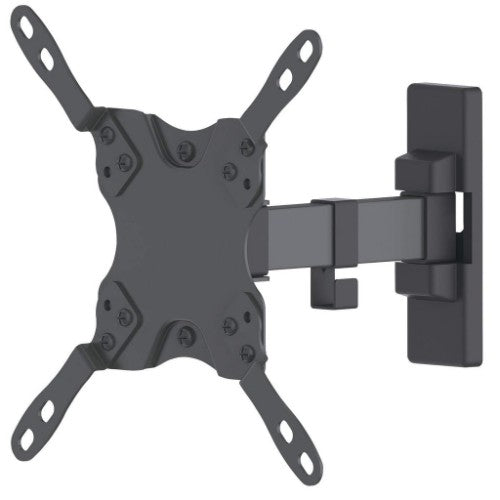

Wall Mount for TV & Monitors (Tilt and Swivel 2 pivots), For screens 13" to 42", VESA compatability: all between 75x75mm and 200x200mm - check the dimensions of the four mounting holes on back of screen to ensure it fits, Max 20kg, Bracket
Overcome an odd floor plan, annoying glare or awkward furniture placement that can limit the enjoyment of your flat-panel TV. The Manhattan Universal Flat-Panel TV Articulating Wall Mount folds nearly flat against the wall and safely extends on a strong arm frame that helps you achieve prime viewing positions. VESA-compliant and constructed of quality materials, this articulating wall mount fits a range of display sizes for a secure and confident above-the-floor TV installation. It's the perfect fit for mounting a TV in your living room, bedroom or den, as well as for commercial uses in hotels, classrooms, conference rooms, for digital signage and more. Wherever you install it, the Manhattan Universal Flat-Panel TV Articulating Wall Mount puts the best TV viewing experience front and centre.
Key Features
- Securely holds one flat-panel television or monitor
- Optimize views with +5° to -12° tilt, ±90° swivel and ±3° level adjustment

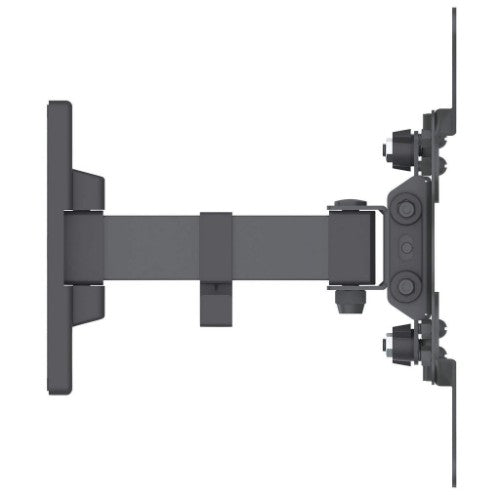

- Extends TV up to 19 cm (7.5 in.) from wall
- Solid steel construction
- Easy installation ideal for home, office and commercial applications

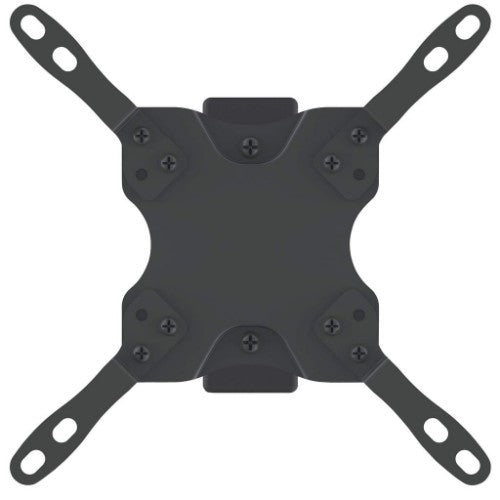

- Removable VESA plate enables fast and easy attachment of monitor or TV
- Built-in cable-management system
- Meets VESA standards – supports displays from 13” to 42" up to 20 kg (44 lbs.)
- Lifetime Warranty
Description
A TV wall mount for anywhereOvercome an odd floor plan, annoying glare or awkward furniture placement that can limit the enjoyment of your flat-panel TV. The Manhattan Universal Flat-Panel TV Articulating Wall Mount folds nearly flat against the wall and safely extends on a strong arm frame that helps you achieve prime viewing positions. VESA-compliant and constructed of quality materials, this articulating wall mount fits a range of display sizes for a secure and confident above-the-floor TV installation. It's the perfect fit for mounting a TV in your living room, bedroom or den, as well as for commercial uses in hotels, classrooms, conference rooms, for digital signage and more. Wherever you install it, the Manhattan Universal Flat-Panel TV Articulating Wall Mount puts the best TV viewing experience front and centre.

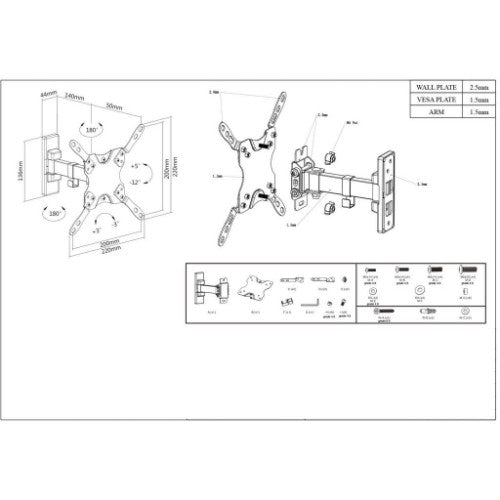

Specifications
| Mounting | |
|---|---|
| Minimum screen size | 33 cm (13") |
| Panel mounting interface | 75 x 75,100 x 100,200 x 200 |
| Number of displays supported | 1 |
| Mounting type | Wall |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 200 x 200 mm |
| Distance to the wall (min) | 6 cm |
| Distance to the wall (max) | 19 cm |
| Maximum weight capacity | 20 kg |
| Maximum screen size | 106.7 cm (42") |
| Ergonomics | |
| Cable management | Yes |
| Swivel angle range | -90 - 90° |
| Tilt angle range | -12 - 5° |
| Tilt adjustment | Yes |
| Design | |
| Product colour | Black |
| Housing material | Steel |
| Technical details | |
| Mounting type | Wall |
| Distance to the wall (min) | 6 cm |
| Distance to the wall (max) | 19 cm |
| Product colour | Black |
| Cable management | Yes |
| Weight & dimensions | |
| Width | 220 mm |
| Height | 220 mm |
| Weight | 1.05 kg |
| Packaging content | |
| Manual | Yes |
| Other features | |
| Depth (max) | 19 cm |
| Mounting type | Wall |
| Packaging data | |
| Manual | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85299097 |
