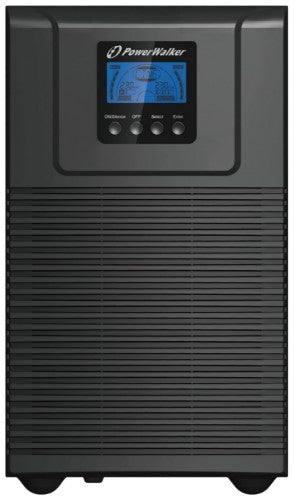

PowerWalker VFI 3000 TGB uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 5 AC outlet(s)

3kVA, 2.7kW, 176-300V, 40-70Hz, 190x399x328mm, 22.2kg, Black

Description

PowerWalker VFI 3000 TGB

The PowerWalker VFI 1000-10000 TG/TGB/TGS offer a professional solution for home and office environment. They are available with different designs:
- TG: With internal battery; ranges from 1000-3000VA
- TGB: With internal battery and battery connector for external battery packs; ranges from 1000-10000VA
- TGS: Without internal batteries, but with a strong charger and battery connector; ranges from 1000-10000VA
The VFI TG/TGB/TGS series are detected as Human Interface Device (HID) Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).

Specifications

Power
Output power	2700 W
Input operation voltage (min)	176 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	90%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	3 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	50 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Sine
Output power	2700 W
Input operation voltage (min)	176 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	90%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	50 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	3 kVA
Input frequency	40 - 70 Hz
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	5 AC outlet(s)
AC outlet types	C13 coupler, C19 coupler
Power plug	C20 coupler
RS-232 ports	1
Battery
Number of batteries supported	6
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	4 h
Typical backup time at half load	11.7 min
Typical backup time at full load	3.9 min
Design
Product colour	Black
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	324 mm
Package depth	500 mm
Package height	464 mm
Weight	22.2 kg
Width	190 mm
Package weight	26 kg
Height	328 mm
Depth	399 mm
Packaging data
Cables included	Input power cable, USB cable
Manual	Yes
Software CD	Yes
Package width	324 mm
Package depth	500 mm
Package height	464 mm
Package weight	26 kg
Logistics data
Products per pallet	14 pc(s)
Harmonized System (HS) code	85078000
Packaging content
Cables included	Input power cable, USB cable
Manual	Yes
Software CD	Yes
