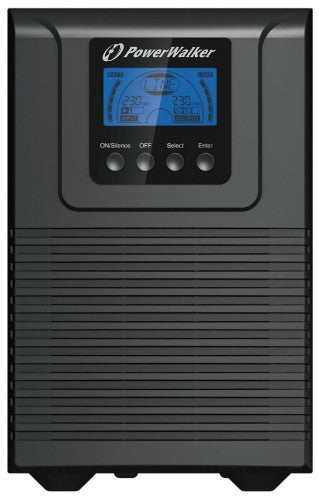

PowerWalker VFI 1000 TGB uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 4 AC outlet(s)

1kVA, 900kW, 176-300V, 40-70Hz,144x356x229mm, 9.3kg, Black

Description

Features

- High efficiency results in energy saving with output power factor 0.9
- Human Interface Device (HID) compatible USB connection (no additional drivers needed)
- Wide input voltage range for all environments and support for AC generator
- Available with integrated batteries

Specifications

Power
Output voltage regulation	2%
Output power	900 W
Input operation voltage (min)	176 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	89%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1 kVA
Performance
UPS topology	Double-conversion (Online)
Waveform	Sine
Noise level	45 dB
Features
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	2%
Output power	900 W
Input operation voltage (min)	176 V
Input operation voltage (max)	300 V
Output operation voltage (min)	220 V
Output operation voltage (max)	240 V
Efficiency	89%
Emergency Power Off (EPO)	Yes
Power factor	0.9
Output voltage Total Harmonic Distortion (THD)	5%
Noise level	45 dB
Input current Total Harmonic Distortion (THD)	5%
Crest factor	3:1
Output power capacity	1 kVA
Input frequency	40 - 70 Hz
Ports & interfaces
Emergency Power Off (EPO) connector	Yes
USB port	Yes
AC outlets quantity	4 AC outlet(s)
AC outlet types	C13 coupler
Power plug	C14 coupler
RS-232 ports	1
Battery
Number of batteries supported	2
Battery voltage	12 V
Battery capacity	9 Ah
Battery recharge time	4 h
Typical backup time at half load	10.5 min
Typical backup time at full load	3.7 min
Design
Product colour	Black
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Technical details
Harmonized System (HS) code	85078000
Weight & dimensions
Package width	240 mm
Package depth	436 mm
Package height	330 mm
Weight	9.3 kg
Width	144 mm
Package weight	11 kg
Height	229 mm
Depth	356 mm
Packaging data
Cables included	Input power cable, USB cable
Manual	Yes
Software CD	Yes
Package width	240 mm
Package depth	436 mm
Package height	330 mm
Package weight	11 kg
Logistics data
Harmonized System (HS) code	85078000
Packaging content
Cables included	Input power cable, USB cable
Manual	Yes
Software CD	Yes
