Description
2kVA, 1.8kW, 176-300V, 4xC13, 190x399x328mm, 17.2kg, Black
The PowerWalker VFI 1000-10000 TG/TGB/TGS offer a professional solution for home and office environment. They are available with different designs:
- TG: With internal battery; ranges from 1000-3000VA
- TGB: With internal battery and battery connector for external battery packs; ranges from 1000-10000VA
- TGS: Without internal batteries, but with a strong charger and battery connector; ranges from 1000-10000VA
The VFI TG/TGB/TGS series are detected as Human Interface Device (HID) Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
Description

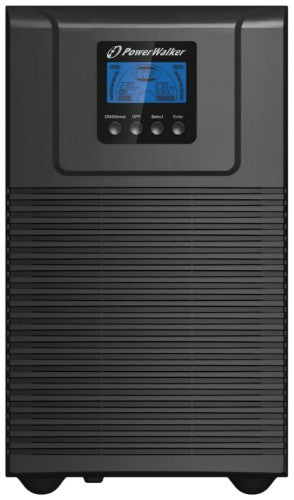

VFI 2000 TGBThe PowerWalker VFI 1000-10000 TG/TGB/TGS offer a professional solution for home and office environment. They are available with different designs:
- TG: With internal battery; ranges from 1000-3000VA
- TGB: With internal battery and battery connector for external battery packs; ranges from 1000-10000VA
- TGS: Without internal batteries, but with a strong charger and battery connector; ranges from 1000-10000VA
The VFI TG/TGB/TGS series are detected as Human Interface Device (HID) Power Device by the internal O/S drivers and can be managed without additional software. It finds its application in all dedicated systems for kiosks, ATMs as well as in high security level systems, where additional software is not allowed (i.e. banking).
Specifications
| Power | |
|---|---|
| Output power | 1800 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Performance | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Noise level | 50 dB |
| Features | |
| UPS topology | Double-conversion (Online) |
| Waveform | Sine |
| Output power | 1800 W |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 300 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Power factor | 0.9 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Noise level | 50 dB |
| Input current Total Harmonic Distortion (THD) | 5% |
| Crest factor | 3:1 |
| Output power capacity | 2 kVA |
| Input frequency | 40 - 70 Hz |

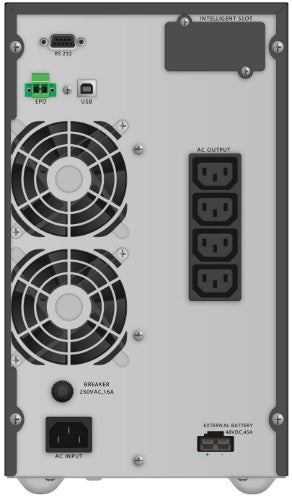

| Ports & interfaces | |
| USB port | Yes |
| AC outlets quantity | 4 AC outlet(s) |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| Battery | |
| Number of batteries supported | 4 |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery recharge time | 4 h |
| Typical backup time at half load | 11 min |
| Typical backup time at full load | 3.8 min |
| Design | |
| Product colour | Black |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Package width | 324 mm |
| Package depth | 500 mm |
| Package height | 464 mm |
| Weight | 17.2 kg |
| Width | 190 mm |
| Package weight | 20 kg |
| Height | 328 mm |
| Depth | 399 mm |
| Packaging data | |
| Cables included | Input power cable, USB cable |
| Manual | Yes |
| Software CD | Yes |
| Package width | 324 mm |
| Package depth | 500 mm |
| Package height | 464 mm |
| Package weight | 20 kg |
| Logistics data | |
| Products per pallet | 14 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Packaging content | |
| Cables included | Input power cable, USB cable |
| Manual | Yes |
| Software CD | Yes |
