Description

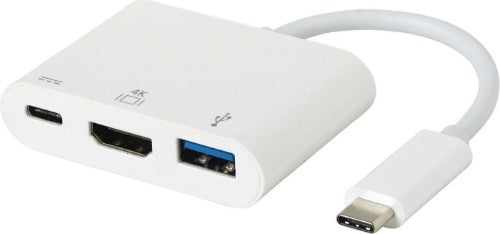

USB-C AV Multiport Hub
Input:
USB-C Male x 1 / USB-C Female x 1
Output:
HDMI Female x 1 / USB-A 3.0 Female x 1
Key Features
- HDMI 4Kx2K@30Hz, 9Gbps Bandwidth
- USB 3.0 super speed (5Gbps) transmission (USB 2.0 compatible)
- USB 3.0 supports simultanious charge & sync
- USB 3.0 supports BC1.2. Max output: 7.5W (5V/1.5A)
- USB-C PD Charging up to 60W (20V/3A)
Description
This is a USB-C to USB 3.0 with HDMI and Type-C charging port adapter. The USB3.0 port allows you to connect a USB device or another hub to the host computer. The USB-C female port can charge the host computer and supply power for the adapter at the same time. The HDMI port (DP 1.2 Altmode) allows you to connect a monitor with an HDMI connection in order for you to watch videos or slideshows on a big screen. It works with both Macbooks, iPads and other USB-C supported devices.Input:
USB-C Male x 1 / USB-C Female x 1
Output:
HDMI Female x 1 / USB-A 3.0 Female x 1
Specifications
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Hub interfaces | HDMI |
| Ports quantity | 3 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| HDMI version | 1.4 |
| Cable length | 0.15 m |
| Features | |
| Surge protection | Yes |
| Country of origin | China |
| Plug and Play | Yes |
| Overload protection | Yes |
| Hot-swap | Yes |
| Product colour | White |
| Certification | CE, RoHS |
| Cable length | 0.15 m |
| Data transfer rate | 5000 Mbit/s |
| Overcurrent protection | Yes |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| USB Power Delivery (USB PD) | Yes |
| Compatible products | Macbooks, Laptops and other USB-C equipped devices, no driver needed |
| USB Power Delivery revision | 3.0 |
| Housing material | ABS synthetics |
| USB Power Delivery up to | 60 W |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Power source type | USB |
| USB charging port | Yes |
| USB powered | Yes |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Product colour | White |
| Country of origin | China |
| Overload protection | Yes |
| Overcurrent protection | Yes |
| Performance | |
| Certification | CE, RoHS |
| Surge protection | Yes |
| Plug and Play | Yes |
| Overload protection | Yes |
| Hot-swap | Yes |
| Data transfer rate | 5000 Mbit/s |
| Overcurrent protection | Yes |
| USB Power Delivery (USB PD) | Yes |
| Compatible products | Macbooks, Laptops and other USB-C equipped devices, no driver needed |
| USB Power Delivery revision | 3.0 |
| Harmonized System (HS) code | 84719000 |
| Weight & dimensions | |
| Weight | 60 g |
| Package width | 85 mm |
| Package depth | 25 mm |
| Package height | 180 mm |
| Package weight | 70 g |
| Packaging data | |
| Package type | Hanging box |
| Package width | 85 mm |
| Package depth | 25 mm |
| Package height | 180 mm |
| Package weight | 70 g |
| Design | |
| Country of origin | China |
| Product colour | White |
| Certification | CE, RoHS |
| Cable length | 0.15 m |
| Certificates | |
| Certification | CE, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84719000 |
| Packaging content | |
| Package type | Hanging box |
| Other features | |
| Overload protection | Yes |
