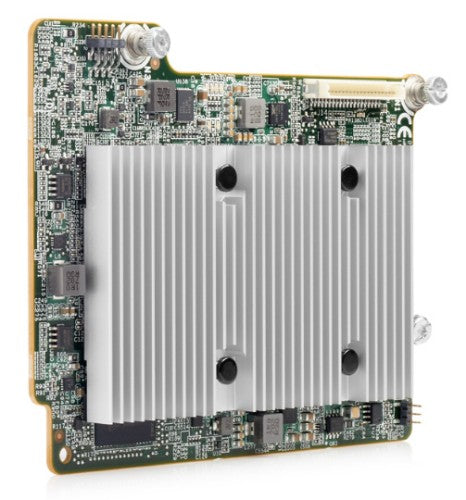

HPE SmartArray P408e-m SR Gen10 RAID controller 12 Gbit/s

8 SAS, 2GB Flash-Backed Write, 12Gb/s SAS, RAID 0,1,5,6,10,50,60,1 ADM,10 ADM

Description

The HPE Smart Array P408e-m SR Gen10 Controller, supporting 12Gb/s SAS and PCIe 3.0, is deal for maximizing performance on externally attached drives while supporting advanced RAID levels with 2 GB flash-backed write cache (FBWC). This controller operates in Mixed Mode which combines RAID and HBA operations simultaneously. It has eight external SAS lanes, allowing connection to externally attached SAS or SATA drives, and provides enterprise-class storage performance, reliability, security and efficiency needed to address your evolving data storage needs. This controller offers enhanced security by encrypting data-at-rest
on any drive with HPE Smart Array SR Secure Encryption.

Specifications

Ports & interfaces
Supported storage drive interfaces	SAS
External SAS ports	8
Memory
Internal memory	2048 MB
Internal memory type	DDR4
Memory clock speed	2100 MHz
Performance
RAID levels	0, 1 ADM, 1, 5, 6, 10, 50, 60
Internal memory	2048 MB
Internal memory type	DDR4
Memory clock speed	2100 MHz
Data transfer rate	12 Gbit/s
Compatible products	HPE ProLiant BL460c Gen10 Server Blade
Data transmission
Data transfer rate	12 Gbit/s
Technical details
RAID levels	0, 1 ADM, 1, 5, 6, 10, 50, 60
System requirements
Other operating systems supported	VMware vSphere ESXi
Other features
Other operating systems supported	VMware vSphere ESXi
