Description

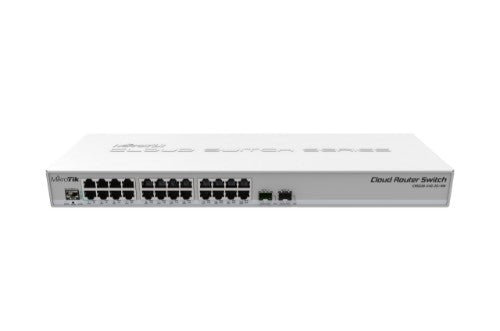

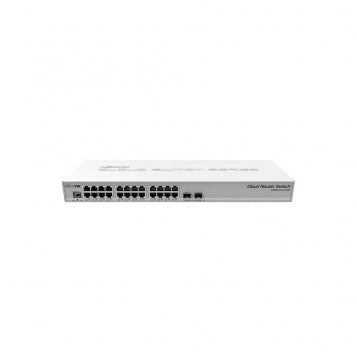

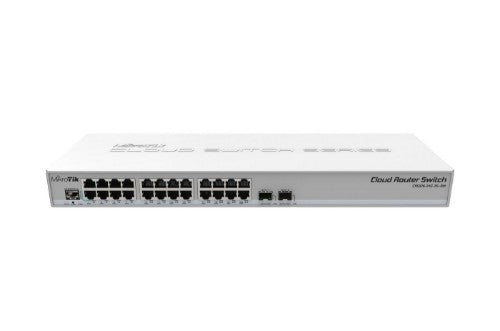

24x 10/100/1000 RJ-45, 2x SFP+, 800 MHz, 512 MB, 440 x 144 x 44 mm, RouterOS/SwOS
It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Description
SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.
It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.
Specifications
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 0 |
| Installed SFP+ modules quantity | 0 |
| Console port | RJ-45 |
| Network | |
| Networking standards | IEEE 802.1Q |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Number of VLANs | 4000 |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Security | |
| Security algorithms | SNMP |
| Access Control List (ACL) | Yes |
| Design | |
| Product colour | Grey |
| Performance | |
| Processor frequency | 800 MHz |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| Compatible operating systems | RouterOS, SwitchOS |
| Built-in processor | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power consumption (max) | 24 W |
| Power supply included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 60 °C |
| Virtual LAN features | |
| VLAN support | Yes |
| Number of VLANs | 4000 |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 144 mm |
| Height | 44 mm |
| Packaging content | |

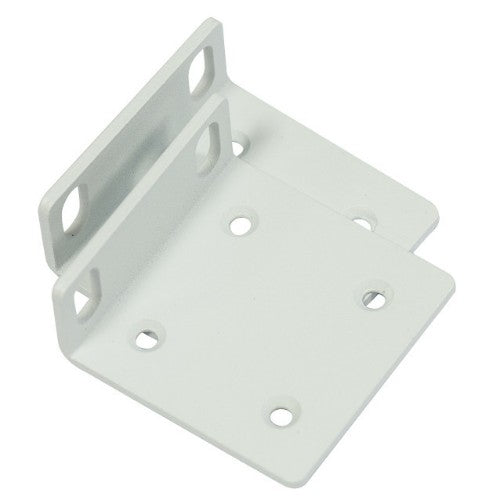

| Rack mount kit | Yes |

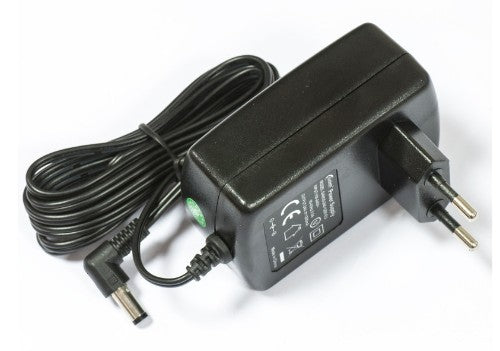

| AC adapter included | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Data transmission | |
| Number of VLANs | 4000 |
| Technical details | |
| Product colour | Grey |
| Processor frequency | 800 MHz |
| Built-in processor | Yes |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 16 MB |
| System requirements | |
| Compatible operating systems | RouterOS, SwitchOS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
