Description
1D/2D, 8600 lx, 100-240V, 50-60Hz, 12W, 130x401x130mm, Black/Silver

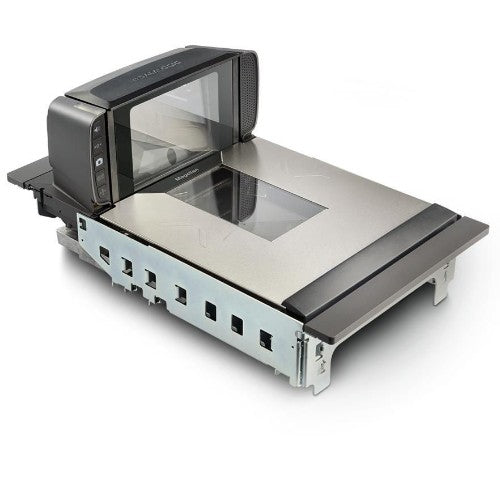

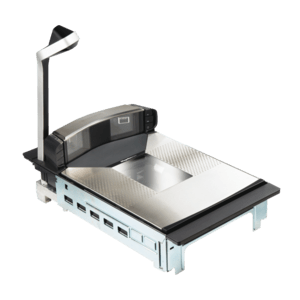

The Magellan 9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers. The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. Innovative features and options such as ScaleSentry shrink monitoring/prevention technology, AllWeighs platters and the support of all major EAS systems make 9400i purpose-built to help retailers reduce shrink at the POS.
Description
The Magellan 9400i imagers read 1D/2D bar codes and Digimarc Barcodes in any orientationThe Magellan 9400i scanner/scale: a new class of high performance bar code scanners. With digital imagers in all planes, the 9400i scanners read both 1D and 2D bar codes seamlessly without requiring item orientation by the cashier. With a more traditional bonnet height and large horizontal and vertical windows, the Magellan 9400i allows optimum positioning for POS or self-checkout touchscreens, payment terminals and printers while maintaining ergonomic comfort for both seated and standing cashiers. The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from their mobile phone screen or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time. Innovative features and options such as ScaleSentry shrink monitoring/prevention technology, AllWeighs platters and the support of all major EAS systems make 9400i purpose-built to help retailers reduce shrink at the POS.
Specifications
| Scanning | |
|---|---|
| Type | Built-in bar code reader |
| Linear (1D) barcodes supported | GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Data Matrix, Micro QR Code, QR Code |
| Sensor type | Linear |
| Scanner type | 1D/2D |
| Light levels (direct sunlight) | 0 - 86000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Performance | |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | R.E.A.C.H - EC1907/2006 |
| Image formats supported | BMP, JPEG |
| Light levels (direct sunlight) | 0 - 86000 lx |
| Design | |
| Type | Built-in bar code reader |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | R.E.A.C.H - EC1907/2006 |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 12 W |
| Input frequency | 50-60 Hz |
| Power consumption (standby) | 11 W |
| Input voltage | 100-240 V |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 401 mm |
| Height | 130 mm |
| Technical details | |
| Type | Built-in bar code reader |
| Protection features | Electrostatic Discharge (ESD) protection |
| LED indicators | Yes |
| Product colour | Black, Silver |
| Certification | R.E.A.C.H - EC1907/2006 |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 86000 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
