Description
1D, RS-232, USB, 3GL, IP65, 212x110x74 mm, 340 g, USB kit
The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Description

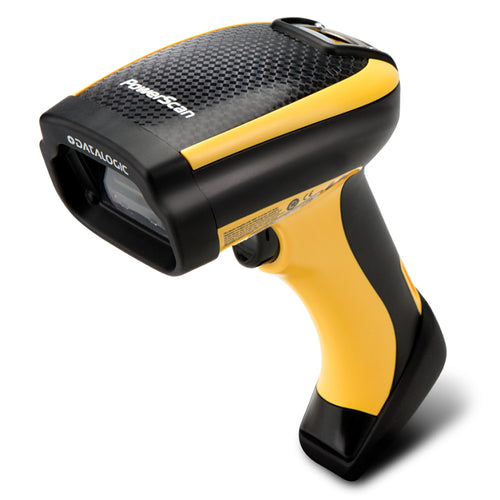

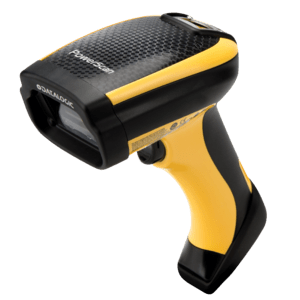

The PowerScan PD9130 linear imager is a corded device offering state-of-the-art performance in an industrial product. This linear imager introduces Datalogic’s new and innovative scanning technology, implementing a green scanning line which has the same definition of a laser beam with all the benefits of a linear imager.The PD9130 imager features Datalogic’s exclusive 3 Green Lights (3GL) for superior good read feedback. The patented ‘Green Spot’ technology directly on the code and dual Good Read LEDs on the top of the cap increase visibility at any angle.
The PD9130 imager’s mechanics have been developed and tested to withstand extreme environmental conditions, maintaining consistent reading performance without degrading performance or reliability. Its ergonomic enclosure is lightweight and well-balanced to ensure optimal operator comfort during scan-intensive operations.
All models have multi-interface capabilities featuring the most popular interfaces; RS-232, Keyboard Wedge and USB.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN 2, EAN 5, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, GS1-128 (UCC/EAN-128), Interleaved 2 of 5, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported | Not supported |
| Yaw reading angle | -70 - 70° |
| Tilt reading angle | -45 - 45° |
| Sensor type | LED |
| Scanner type | 1D |
| Pitch reading angle | -75 - 75° |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | USB |
| Performance | |
| Protection features | Shock resistant |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Design | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Power | |
| Power consumption | 440 mA |
| Power source type | DC |
| Input voltage | 4.5 - 30 V |
| Weight & dimensions | |
| Width | 212 mm |
| Depth | 110 mm |
| Height | 74 mm |
| Weight | 340 g |
| Technical details | |
| Type | Handheld bar code reader |
| Protection features | Shock resistant |
| International Protection (IP) code | IP65 |
| Product colour | Black, Yellow |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Packaging data | |
| Cables included | USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Packaging content | |
| Cables included | USB |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
