Gigabit switch, 8x RJ-45, 2x SFP/RJ-45, PoE+ 130W
Key Features
- 2 SFP/RJ45 Combination Ports; 30 W PoE per port, total 130 W; Gigabit switch; Intuitive graphic topology for system overview
Description

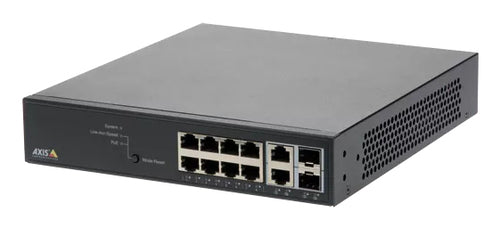

AXIS T8508 PoE+ Network Switch is an 8-port managed Gigabit switch with a compact, fan-less design for installation in noise sensitive environments or to be used as an edge switch. AXIS T8508 is a perfect complement to Axis’ recorders to further simplify setup and installation of surveillance systems. The intuitive administrator interface offers a graphic topology for easy overview of all devices in the system with information about connected devices and status. The high PoE power output allows for connection of up to 8 PoE cameras.
Specifications
| Management features |
|---|
| Switch type |
Managed |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Combo SFP ports quantity |
2 |
| Network |
|---|
| Networking standards |
IEEE 802.1x, IEEE 802.3at |
| 10G support |
No |
| Data transmission |
|---|
| Jumbo frames |
9216 |
| Throughput |
14.9 Mpps |
| MAC address table |
8000 entries |
| Switching capacity |
20 Gbit/s |
| Jumbo frames support |
Yes |
| Security |
|---|
| DHCP features |
DHCP server |
| Design |
|---|
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Power |
|---|
| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
130 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 70 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
242 mm |
| Height |
44 mm |
| Weight |
2.1 kg |
| Performance |
|---|
| Stackable |
No |
| Harmonized System (HS) code |
85176990 |
| Technical details |
|---|
| Product colour |
Black |
| Stackable |
No |
| Rack mounting |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
