Vertiv Liebert IntelliSlot Unity Card

RJ-45, 200 g, 3.6 W, 7 - 12 VDC

Description

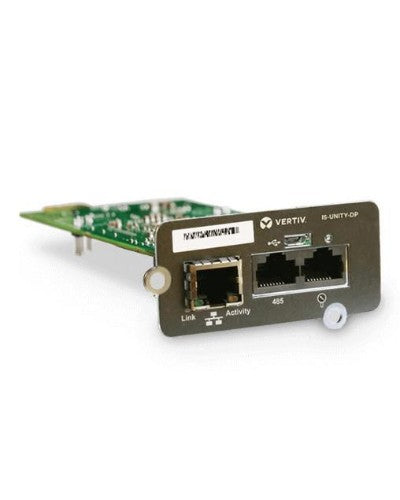

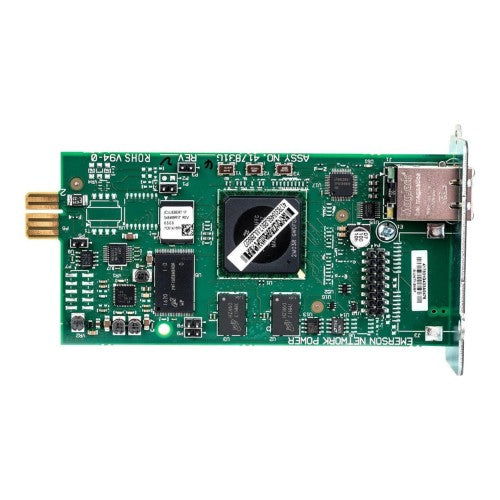

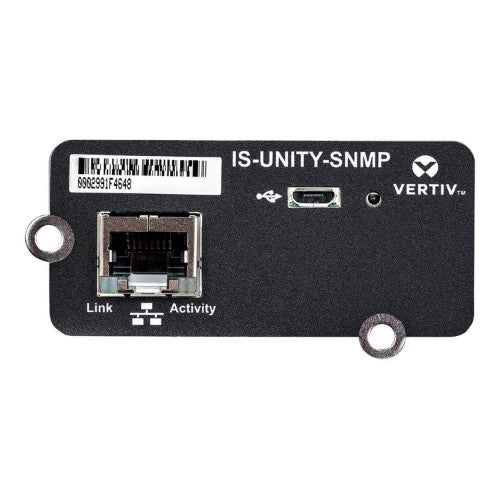

Liebert IntelliSlot Unity Communications Interface Card provides Trellis, LIFE Services and Liebert Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards can monitor and manage a wide range of operating parameters, alarms and notifications.

Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with Vertiv LIFE Services, Trellis, and Liebert Nform.
-SNMP
-WEB Browser
-Email Notifications
-SMS Notifications (require SMS gateway)
-VertivTM LIFETM Services

Specifications

Ports & interfaces
Internal	Yes
Interface	Ethernet
Host interface	RJ-45
Connectivity technology	Wired
Bandwidth
Maximum data transfer rate	100 Mbit/s
Network
Ethernet LAN	Yes
Cabling technology	10/100BaseT(X)
Maximum data transfer rate	100 Mbit/s
Design
Internal	Yes
Power
Output voltage	7-12 V
Power consumption (typical)	3.6 W
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	75.5 mm
Depth	15 mm
Height	37 mm
Weight	200 g
Package weight	600 g
Packaging data
Package weight	600 g
Technical details
Harmonized System (HS) code	85176990
Logistics data
Harmonized System (HS) code	85176990
Other features
Harmonized System (HS) code	85176990
