19" Intelligent 8-Port PDU, 19" Rackmountable C13 Intelligent Power Distribution Unit; Monitors Power, Temperature and Humidity
Key Features
- Eight-port, IEC320 C13 power output with total current of 16 A
- Displays total delivered power in voltage and watts
- Built-in temperature and humidity sensor monitors the operating environment
- Embedded technology, supports Java and web browsing
- Customizable Warning and Overload alarms
- Power-outlet delay-time configurable to prevent the possibility of a power surge to the integral power supply
- Power cycle of each port via web interface
- LED indicates power-supply condition of each power outlet
- Digital display shows real-time value of voltage and current, IP address, or temperature and humidity
- Built-in lightning-protection circuit and voltage-surge circuit
- Three-Year Warranty
Description
The Intellinet Network Solutions 19"; Intelligent 8 Port PDU provides your system-critical devices with steady power, monitors current-voltage levels and keeps track of environmental temperature and humidity levels. A simple web interface enables the systems administrator to set thresholds for the safety of your valuable I.T. equipment.
Specifications
| Design |
|---|
| PDU types |
Monitored |
| Product colour |
Black |
| Certification |
FCC, CE |
| Housing material |
Metal |
| Ports & interfaces |
|---|
| AC outlets quantity |
8 AC outlet(s) |

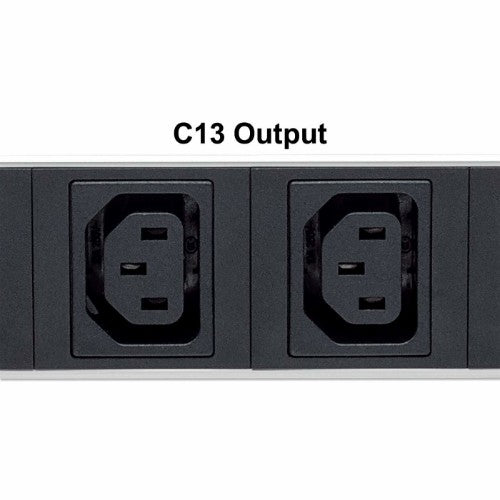

| AC outlet types |
C13 coupler |
| Power plug |
C20 coupler |

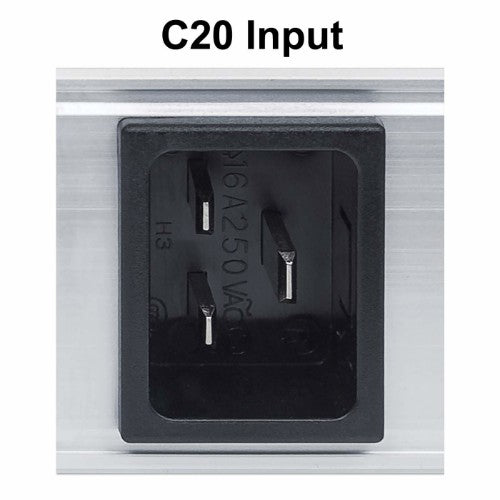

| Input connection type |
IEC320 C20 |
| Ethernet LAN (RJ-45) ports |
1 |
| Features |
|---|
| LED indicators |
Yes |
| Certification |
FCC, CE |
| Management features |
|---|
| Monitoring |
Current, Humidity, Temperature, Voltage |
| Ergonomics |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Nominal input voltage |
90 - 240 V |
| Output voltage |
90 - 240 V |
| Maximum current |
20 A |
| AC input frequency |
50 - 60 Hz |
| Certificates |
|---|
| Certification |
FCC, CE |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Weight |
1.6 kg |
| Width |
442 mm |
| Depth |
119.5 mm |
| Height |
44.5 mm |
| Package height |
2380 mm |
| Packaging content |
|---|
| Cables included |
AC |
| Manual |
Yes |
| Packaging data |
|---|
| Package height |
2380 mm |
