Description
1D/2D, LED, USB, Black/Silver
- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design
Overview

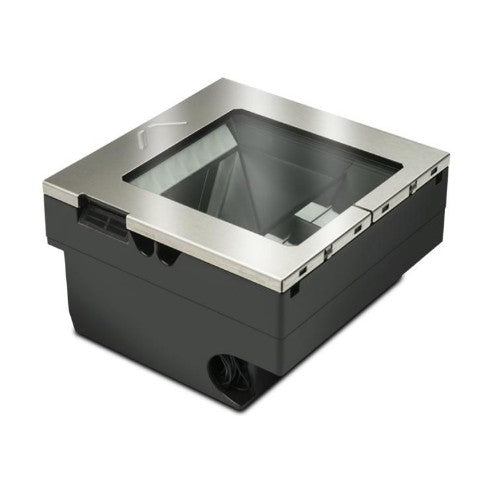

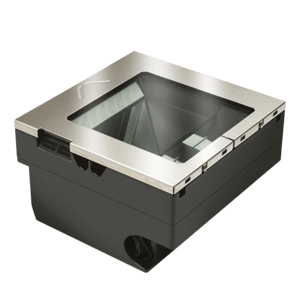

The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
Description
Features- Class leading performance on 1D, 2D, and Digimarc Barcodes whether printed or displayed on smart phones maximizes productivity
- Object Sense illumination control automatically optimizes LED levels for improved user ergonomics and lower power consumption
- Multiple interfaces in each unit including RS-232, OEM USB, USB Keyboard and USB COM
- The FIRST single plane scanner available to support Digimarc Barcode digital watermarks which increase productivity by up to 30% while improving user ergonomics
- Flexible enterprise management with the on board Micro-SD card slot, Micro-B USB Service port or using popular remote management software applications
- Unmatched reliability for Retail with quality materials, excellent sealing, and an all Solid-State design
Overview
The Magellan 3550HSi scanner offers many of the features that have made the Magellan family of imaging scanners so successful, including seamless 1D and 2D decoding, solid state electronics, image capture, compact size and easy service access for software updates or configuration changes. It also benefits from the advances made in imaging, illumination, processors and software that Datalogic has brought to the multi-plane market with the Magellan 9800i and 9400i scanners. Improvements in both hardware and software enable a significant reduction in the brightness of the illumination while improving throughput, depth of field, and speed to read. The gentle, unobtrusive illumination reduces both direct and reflected illumination visible to users. This ensures a comfortable work environment and all day productivity. The Magellan 3550HSi scanner also has a larger, more intuitive scan zone, enabling more comfortable and efficient sweep scanning.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Working distance | 10.2 cm |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Light levels (direct sunlight) | 0 - 86100 lx |
| Optical sensor resolution (W x H) | 1280 x 1024 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Cable length | 4.5 m |
| Standard interfaces | USB |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | Black, Silver |
| Certification | EN62471, IEC62471 |
| Buzzer | Yes |
| Light levels (direct sunlight) | 0 - 86100 lx |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | Black, Silver |
| Certification | EN62471, IEC62471 |
| Power | |
| Power source type | AC |
| Power consumption (typical) | 4 W |
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Weight & dimensions | |
| Width | 152 mm |
| Depth | 152 mm |
| Height | 87 mm |
| Weight | 980 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | Black, Silver |
| Certification | EN62471, IEC62471 |
| Buzzer | Yes |
| Harmonized System (HS) code | 84716070 |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 86100 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
