Description

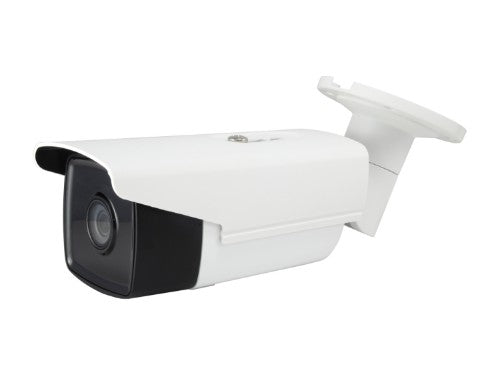

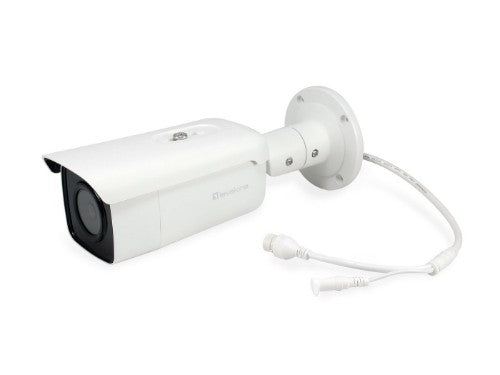

GEMINI FIXED IP CAMERA, 6-MP, H.265, 802.3AF, POE, IR LEDS 60 METER, INDOOR/OUTDOOR
Key Features
- Free surveillance and CMS (Central Management System) software packages with 64-channel license

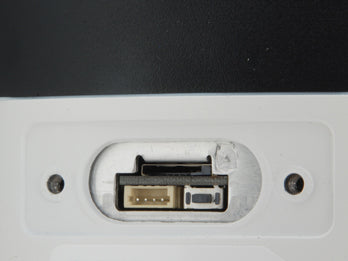

- Built-in Micro SDHC/SDXC card slot for local storage
- Built-in infrared LEDs for night viewing up to 60m
- 6-Megapixel high-definition resolution
- Video compression: H.264, H.265
- Weatherproof IP67-rated housing
Description
The LevelOne FCS-5092 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 6-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5092 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.Specifications
| Performance | |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 33 |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor & outdoor |
| Wide Dynamic Range (WDR) | Yes |
| Certification | FCC, UL |
| Dynamic range | 120 dB |
| Design | |
| Weatherproof | Yes |
| Country of origin | China |
| Form factor | Bullet |
| Product colour | White |
| Mounting type | Wall |
| LED indicators | Power |
| International Protection (IP) code | IP67 |
| Camera | |
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 83.9° |
| Camera shutter speed | 1/3 - 1/100000 s |
| Image sensor | |
| Sensor type | CMOS |
| Lens system | |
| Digital zoom | 8x |
| Night vision | |
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Video compression formats | H.264, H.265 |
| Maximum resolution | 3200 x 1800 pixels |
| Video formats supported | MPEG4 |
| Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520, 3200 x 1800 |
| Total megapixels | 6 MP |
| Audio | |
| Audio system | 1-way |
| Network | |
| Bluetooth | No |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Supported network protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Live view | Yes |
| Storage | |
| Maximum memory card size | 256 GB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Compatible memory cards | MicroSDHC, MicroSDXC |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Human detection, Intrusion, Region entrance detection, Region exiting detection, Vehicle detection |
| Active tampering alarm | Yes |
| Human and vehicle targets classification | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 9 W |
| Power consumption (Power over Ethernet (PoE)) | 7.5 W |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 12 V |
| Certificates | |
| Certification | FCC, UL |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64 |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 386 mm |
| Depth | 155 mm |
| Height | 156 mm |
| Weight | 1.08 kg |
| Package width | 155 mm |
| Package height | 380 mm |
| Package depth | 160 mm |
| Package weight | 1.4 kg |
| Packaging data | |
| Package width | 155 mm |
| Package height | 380 mm |
| Package depth | 160 mm |
| Package weight | 1.4 kg |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Packaging content | |
| Number of cameras | 1 |
| Screws included | Yes |
| Resource CD | Yes |
| Manual | Yes |
| Technical details | |
| Pallet gross width | 120 cm |
| Pallet height (air) | 12.6 m |
| Master (outer) cases per pallet (air) | 12 pc(s) |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS |
| Other features | |
| Video compression formats | H.264, H.265 |
| Browser supported | IE 10+, Chrome 57.0+, Firefox 52.0+ |
| Logistics data | |
| Master (outer) case width | 490 mm |
| Master (outer) case length | 400 mm |
| Master (outer) case height | 460 mm |
| Master (outer) case gross weight | 15 kg |
| Products per master (outer) case | 9 pc(s) |
| Pallet gross width | 120 cm |
| Pallet height (air) | 12.6 m |
| Master (outer) cases per pallet (air) | 12 pc(s) |
