Description
1 x WAN, 3 x WAN/LAN, 1 x LAN, 128MB Flash, 512MB RAM, 100-240V, 50/60Hz, 2500 g

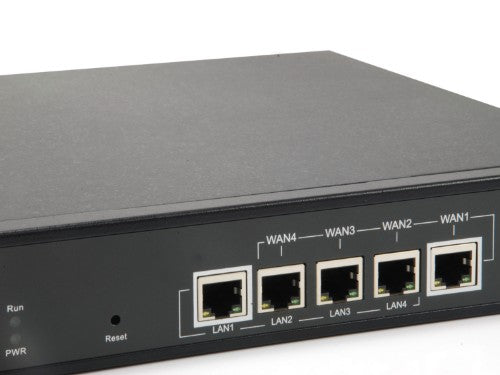

The WAC-2003 controller can also be a multi-WAN Internet gateway with robust firewall to protect Internet access against intruders, 1 WAN, and 3 WAN/LAN and 1 LAN ports in Gigabit speeds allow for fast and reliable distribution of data throughout the network. Up to 4 WAN interfaces with load balancing function satisfy needs of always-on Internet connection with greater bandwidth.
WAC-2003 integrates a wide variety of functions, the administrator can easily build up AP’s configuration including tag-based VLAN settings, upgrade the AP’s firmware and monitor AP on/off status, numbers of connected AP and users. Captive portal function provides a convenient way of authentication for guest users.
The LevelOne WAC-2003 also supports real-time control to access point RF scanning for signal strength and interference information. According to the results, WAC-2003 will adjust traffic loading, output power, RF coverage and channel distribution of the APs to optimize wireless coverage and throughput.
Description

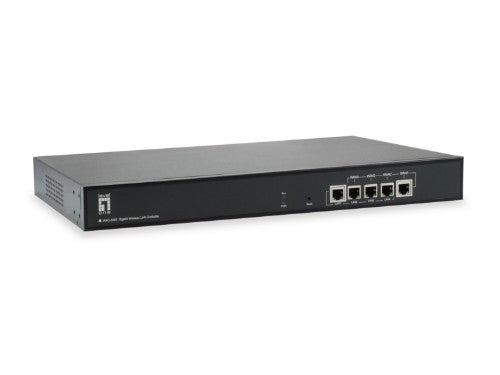

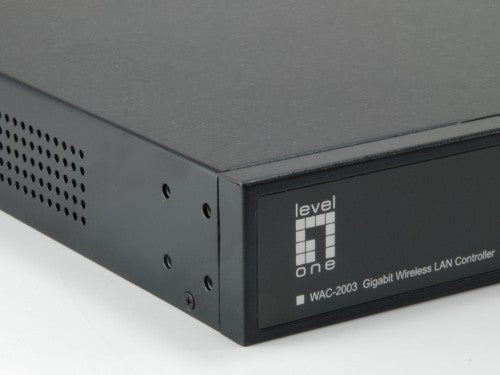

The LevelOne WAC-2003 is a Gigabit WLAN Controller designed for small-to-medium sized networks such as SMBs, schools, boutique hotels and apartments. Centralized management of up to 300 APs offers complete wireless security and service solutions for any mid-range wireless network.The WAC-2003 controller can also be a multi-WAN Internet gateway with robust firewall to protect Internet access against intruders, 1 WAN, and 3 WAN/LAN and 1 LAN ports in Gigabit speeds allow for fast and reliable distribution of data throughout the network. Up to 4 WAN interfaces with load balancing function satisfy needs of always-on Internet connection with greater bandwidth.
WAC-2003 integrates a wide variety of functions, the administrator can easily build up AP’s configuration including tag-based VLAN settings, upgrade the AP’s firmware and monitor AP on/off status, numbers of connected AP and users. Captive portal function provides a convenient way of authentication for guest users.
The LevelOne WAC-2003 also supports real-time control to access point RF scanning for signal strength and interference information. According to the results, WAC-2003 will adjust traffic loading, output power, RF coverage and channel distribution of the APs to optimize wireless coverage and throughput.
Specifications
| Design | |
|---|---|
| LED indicators | Power |
| Certification | CE, FCC |
| Mounting type | Rack mounting |
| Performance | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Certification | CE, FCC |
| Mounting type | Rack mounting |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Data transfer rate | 1 Gbit/s |
| Security | |
| VLAN support | Yes |
| Access point isolation | Yes |
| Firewall security | Yes |
| Ports & interfaces | |
| WAN connection | Ethernet (RJ-45) |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
| Syslog | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Power | |
| Power consumption (typical) | 10 W |

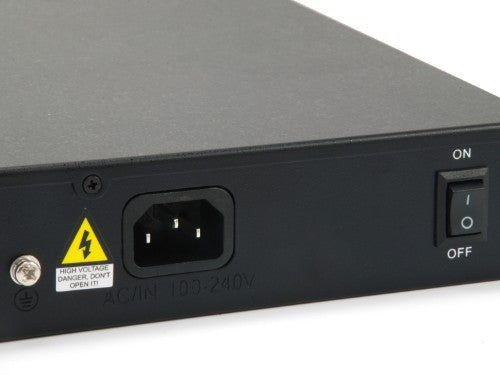

| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Weight & dimensions | |
| Weight | 2.5 kg |
| Dimensions (WxDxH) | 440 x 240 x 44 mm |
| Width | 240 mm |
| Height | 44 mm |
| Depth | 440 mm |
| Package weight | 3 kg |
| Package width | 305 mm |
| Package height | 80 mm |
| Package depth | 500 mm |
| Packaging data | |
| Package weight | 3 kg |
| Package type | Box |
| Package width | 305 mm |
| Package height | 80 mm |
| Package depth | 500 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | AC, LAN (RJ-45) |
| Package type | Box |
| Operational conditions | |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Country of origin | China |
| Package weight | 3 kg |
| Package dimensions (WxDxH) | 305 x 500 x 80 mm |
| Harmonized System (HS) code | 85176990 |
| Indication | |
| LED indicators | Power |
| Memory | |
| Internal memory | 512 MB |
| Flash memory | 128 MB |
| Certificates | |
| Certification | CE, FCC |
| Logistics data | |
| Country of origin | China |
| Master (outer) case width | 435 mm |
| Master (outer) case length | 520 mm |
| Master (outer) case height | 330 mm |
| Master (outer) case gross weight | 4 kg |
| Products per master (outer) case | 5 pc(s) |
| Harmonized System (HS) code | 85176990 |
