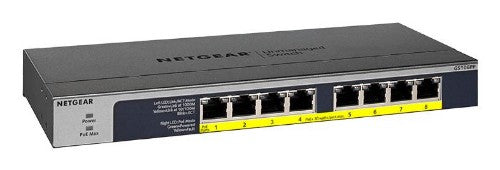

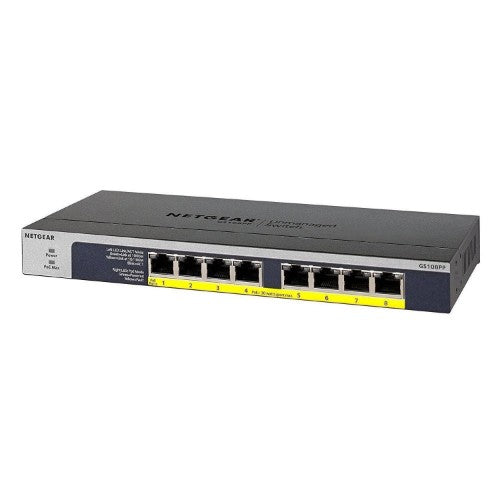

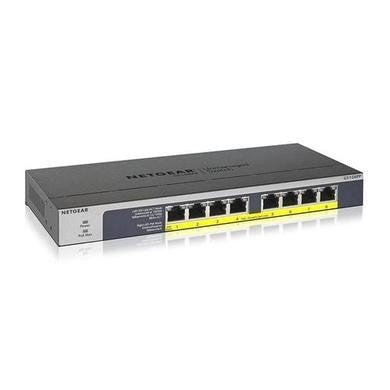

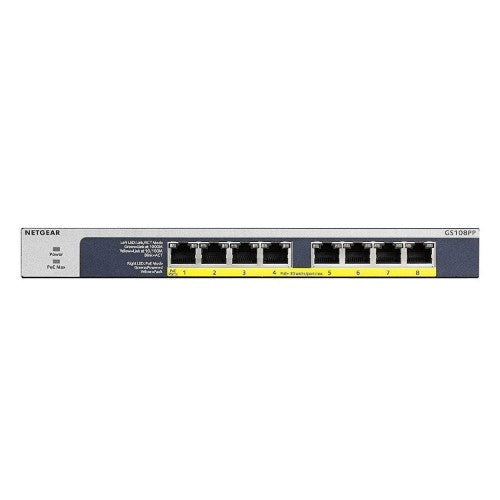

NETGEAR GS108PP, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Rack mounting, Wall mountable
Description
NETGEAR GS108PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x. DC input voltage: 54 V. Power over Ethernet (PoE). Wall mountable, Rack mounting
Specifications
| Technical details |
|---|
| Product colour |
Black |
| Mean time between failures (MTBF) |
2752476 h |
| Rack mounting |
Yes |
| Management features |
|---|
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Yes |
| Ports & interfaces |
|---|
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Full duplex |
Yes |
| 10G support |
No |
| Data transmission |
|---|
| Jumbo frames |
9000 |
| MAC address table |
4000 entries |
| Switching capacity |
16 Gbit/s |
| Jumbo frames support |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1 |
| Design |
|---|
| Wall mountable |
Yes |
| Product colour |
Black |
| LED indicators |
Yes |
| Certification |
CE, FCC, ICES-003, VCCI, RCM, BSMI, KC, CB, CE LVD, BSMI, EAC, RCM, KC, EN 60950-1 |
| Rack mounting |
Yes |
| Performance |
|---|
| Buffer size |
192 KB |
| Plug and Play |
Yes |
| Mean time between failures (MTBF) |
2752476 h |
| Harmonized System (HS) code |
85176990 |
| Indication |
|---|
| LED indicators |
Yes |
| Power |
|---|
| Output voltage |
2.4 V |
| Power consumption (typical) |
123 W |
| DC input voltage |
54 V |
| Power source |
DC |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port |
30 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
123 W |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 70 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Operating altitude |
0 - 3000 m |
| Weight & dimensions |
|---|
| Width |
236 mm |
| Depth |
102 mm |
| Height |
27 mm |
| Weight |
600 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
