Digitus HDMI KVM IP Extender Set

HDMI KVM Extender, 120 m, Full HD, 1080p over network cable (Cat 5, 5E, 6),

Key Features

• Extends the maximum length for HDMI cables to up to 120 m via a simple network cable
• Extension of the signal (unlimited distance) via the existing local network infrastructure (via IP connection)
• Highest supported video resolution: 1080p / 60 Hz
• Supports KVM function - convenient control of mouse & keyboard via USB on the receiver unit
• Supports LAN standard 802.3 Ethernet 10/100/100 Mbps
• LED activity indicator for function, keyboard and mouse
• Transmission lengths: 120 m (CAT6), 100 m (CAT5e), 80 m (CAT5)
• Video bandwidth: < 70 Mbps
• Video latency: 70 ms
• Audio support PCM (44.1KHz, 48KHz)
• USB keyboard and mouse support
• Supports UTP/STP CAT 5/5e/6/7 network cables according to IEEE-568B standard
• Plug & Play, no additional software required - Driver CD may only be required if there is no mouse & keyboard function
• Power consumption: < 3.5 W (TX or RX)
• Working temperature: 0 ~ 60° C
• Ambient temperature: -20 ~ 70° C
• Compression: MJPEG
• High-quality aluminum housing
• Dimensions: L 11.0 x W 9.0 x H 2.6 cm
• Color: black

Description

Extends the HDMI signal up to 120 m and offers the option of controlling the keyboard and mouse via USB on the receiver unit

- Extends the maximum length for HDMI cables to up to 120 m via a simple network cable
- Extension of the signal (unlimited distance) via the existing local network infrastructure (via IP connection)
- Highest supported video resolution: 1080p / 60 Hz
- Supports KVM function - convenient control of mouse & keyboard via USB on the receiver unit
- Supports LAN standard 802.3 Ethernet 10/100/100 Mbps
- LED activity indicator for function, keyboard and mouse

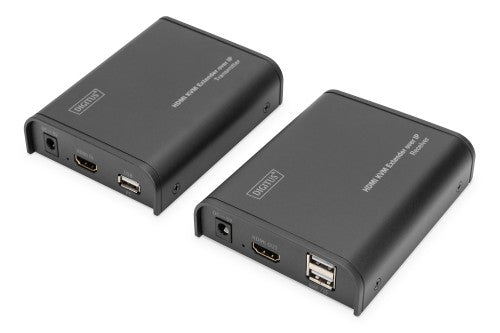

The Digitus HDMI KVM Extender Set consists of a transmitter unit (local location) and a receiver unit (remote location). The HDMI signal can be extended to a maximum distance of 120 m via a network cable (CAT 6, 5e, 5). The HDMI signal can also be extended to an unlimited distance via the existing network infrastructure (via IP connection). The highest supported video resolution is 1080p / 60 Hz. It also allows convenient access to a computer (mouse & keyboard) via the USB ports on the receiver unit. It is perfect for industrial, commercial and public applications.

Specifications

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	80 m
Cable types supported	Cat5, Cat5e, Cat6
Maximum digital resolution	1920 x 1080 pixels
Product colour	Black
Material	Aluminium
Country of origin	China
Plug and Play	Yes
LED indicators	Yes

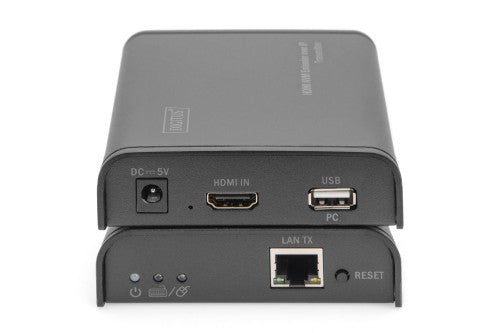

Transmitter
Transmitter video port type	HDMI
Transmitter local keyboard/mouse port type	USB
RJ-45 ports quantity (transmitter)	1

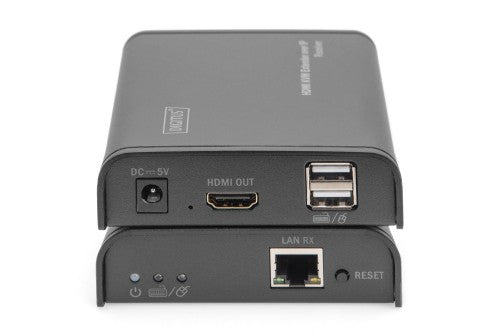

Receiver
Receiver local video port type	HDMI
Receiver local keyboard/mouse port type	USB
RJ-45 ports quantity (receiver)	1
Power
AC adapter output voltage	5 V
AC adapter output current	1 A
Power consumption (transmitter) (max)	3.5 W
Power consumption (receiver) (max)	3.5 W
Weight & dimensions
Transmitter weight	160 g
Receiver weight	170 g
Package width	176 mm
Package depth	240 mm
Package weight	740 g
Packaging data
Package width	176 mm
Package depth	240 mm
Package weight	740 g
AC adapter included	Yes
Manual	Yes
Packaging content
AC adapter included	Yes
Manual	Yes
Technical details
Harmonized System (HS) code	84733080
Maximum resolution	1920 x 1080 pixels
Dimensions (WxDxH)	89.5 x 109.6 x 26.3 mm
Package volume	3379.2 cm³
Operational conditions
Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Logistics data
Country of origin	China
UK Trade Tariff code	85176200
Harmonized System (HS) code	84733080
