Description
Audio Extender Kit, with 12V/1A PSU EU plug

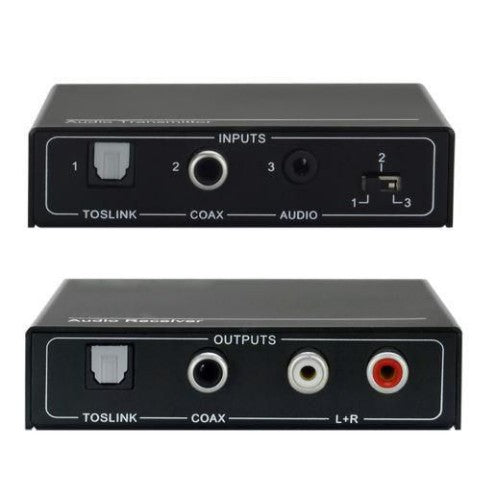

It provides TOSLINK/COAX/STEREO audio inputs.
Key Features
- 3 selectable audio inputs
- Power over Cable (PoC), from Rx to Tx
- 100m audio transmission
- 3 audio synchronized outputs
Description

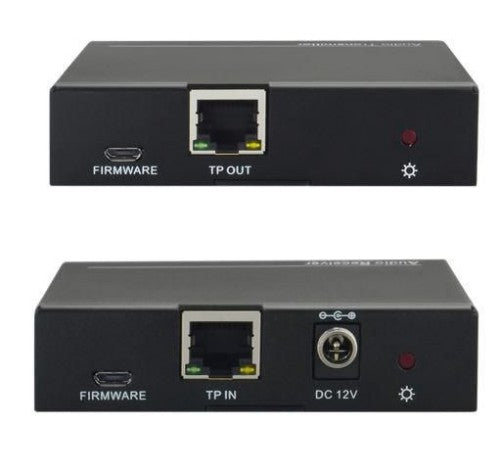

VLEXTA170 is an audio extender, including transmitter & receiver. It distributes audio signal via CATx cable at 100m with PoC function from Rx to Tx.It provides TOSLINK/COAX/STEREO audio inputs.

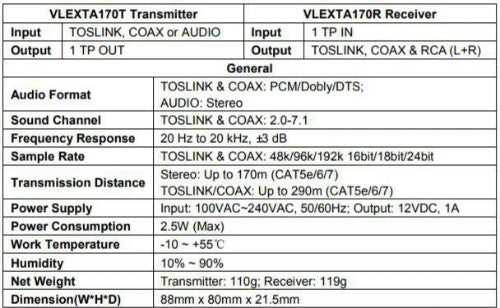

Specifications
| Features | |
|---|---|
| Audio output channels | 2.0 channels |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| LED indicators | Yes |
| Product colour | Black |
| Technical details | |
| Audio output channels | 2.0 channels |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Wi-Fi | No |
| Audio formats supported | PCM |
| Type | AV transmitter & receiver |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Video out | 1 |
| Video in | 1 |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Audio RCA outputs | 1 |
| Wi-Fi | No |
| Bluetooth | No |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Video out | 1 |
| Video in | 1 |
| Audio output | 3 |
| Audio input | 3 |
| Audio (L/R) out | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Digital audio coaxial out | 1 |
| Power | |
| Power consumption (transmitter) (max) | 2.5 W |
| Power consumption (receiver) (max) | 2.5 W |
| Output current | 1 A |
| Operating voltage (transmitter) | 12 V |
| Operating voltage (receiver) | 12 V |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| External power adapter | Yes |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 55 °C |
| Weight & dimensions | |
| Width | 80 mm |
| Transmitter dimensions (WxDxH) | 88 x 80 x 21.5 mm |
| Receiver dimensions (WxDxH) | 88 x 80 x 21.5 mm |
| Package depth | 155 mm |
| Height | 21.5 mm |
| Depth | 80 mm |
| Package width | 156 mm |
| Package height | 120 mm |
| Weight | 240 g |
| Package weight | 484 g |
| Packaging data | |
| Package depth | 155 mm |
| Package width | 156 mm |
| Package height | 120 mm |
| Package weight | 484 g |
| Packaging content | |
| IR receiver included | No |
| IR blaster included | No |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
| Included power plug types | EU |
